Hanwha NOA-E2PW8 OnCAFE Enclosure Kit, 8-Door, Prewired, Dual-voltage Outputs
NOA-E2PW8 | SQ-NOAE2PW8
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

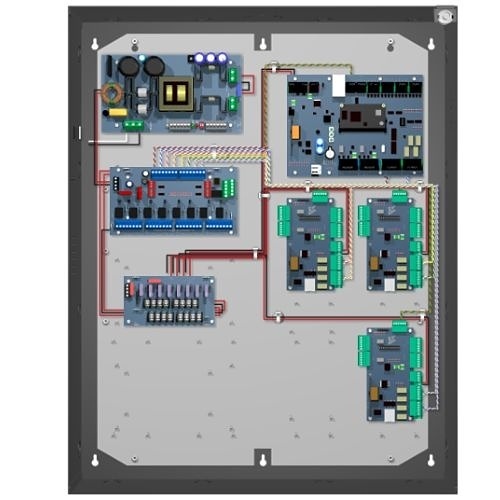

The NOA-E2PW8, Access and Power Integration Solution for Azure, is an 8-door access and power integration kit that includes Altronix power and sub-assemblies, plus factory-installed wire management and wire assemblies pre-configured with terminal blocks for Azure hardware. This unit provides ample power and dual voltage outputs to support Azure platform controllers and locking devices. The NOA-E2PW8 accommodates one (1) 2-Door Network Controller and three (3) Downstream Reader Interfaces. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Main Features
- 8-Door Kit
- Prewired for 1x 2-Door Network Controller (IC2) and 3x Downstream Reader Interfaces (RI2M)
- Controller and Downstream Boards NOT included
- PDS8CB 8-Output Power distribution module (2.5A max per output, PTC protected)
- VR6 Voltage regulator (up to 6A output)
- ACMS8CB 8-Relay Access control module (2.5A max per output, fused)
- Dual-voltage outputs for controllers and locking devices
- Factory-installed wire management and harness assemblies with terminal blocks
- 16AWG Galvanized steel backplane
- Convenient knockout configuration; 1 x 2" conduit, 16 x double knockouts for 1/2" and 3/4"
General Information
Name: Hanwha NOA-E2PW8 OnCAFE Enclosure Kit, 8-Door, Prewired, Dual-voltage Outputs
Category: Hanwha Vision, Access Control, Access Control Panels & Accessories, Access Control Panels
UPC Code: 849688024423
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SQ-NOAE2PW8 Brand Name Hanwha Vision Manufacturer Part Number NOA-E2PW8 Product Line OnCafe
