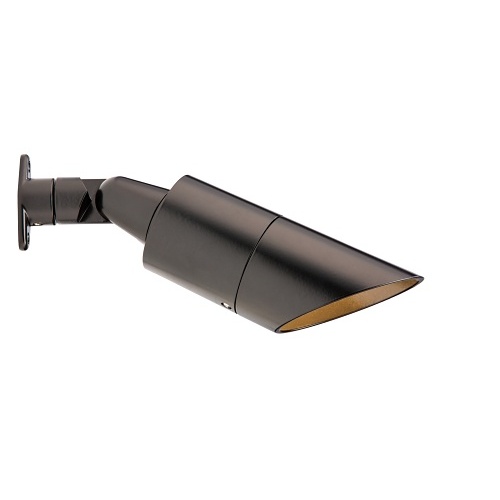

FX Luminaire MD-LED20WFL-FB Vantage Collection Series MD Directional Down Light, 2700K, 20W, Black
Vantage MD Directional Down Light
|PX-MDLED2LFB
Shop All FX Luminaire
FX Luminaire MD-LED20WFL-FB Vantage Collection Series MD Directional Down Light, 2700K, 20W, Black
Vantage MD Directional Down Light | PX-MDLED2LFB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The MD is specifically designed for down light applications. A specially engineered shield cover and knuckle assembly keep moisture outside of the fixture. With a close resemblance to our MU Up Light, you can easily match an entire job with both fixtures.
Main Features
- Built with durable, lightweight aluminum housing that withstands any weather condition
- Utilizes a premium lamp socket with a ceramic base and retaining clips for a secure and long-lasting hold
- Features ProAim adjustability with compress-and-lock features to prevent slip after installation and over 220° of vertical adjustability
- Includes Mini Mount wall bracket for easy installation right out of the box
- Angled or straight glare-control options
- Built-in, spring-loaded lamp positioning for maximum control over glare and photometry
- Available in a warm (2700K) color temperature
- Available in a wide range of powder-coated finishes to suit all exterior designs and preferences
General Information
Name: FX Luminaire MD-LED20WFL-FB Vantage Collection Series MD Directional Down Light, 2700K, 20W, Black
Category: FX Luminaire, Intrusion, Security Sirens & Strobes, Security Lights
UPC Code: 611698118672
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number PX-MDLED2LFB Brand Name FX Luminaire Connecting Thread Type NPSM (National Pipe Straight Mechanical) Manufacturer Part Number MDLED20WFLFB Packaged Quantity 1 Product Line Vantage Collection Product Model Vantage MD Directional Down Light Product Type Landscape Lighting
American Wire Gauge 18AWG Dimmer Type Phase-Cut (Generic) Luminous Flux 260lm Power Consumption 4W
Certifications & Standards Compliant per IEC 60598-1 and IEC 60598-2-7 by selecting the "e" version in parts builder.,CSA C22.2 NO. 250.7,FCC CFR Part 15 Subpart B,NOM,CB Scheme,CE,RCM,UL 1838 Ingress Protection Rating IP65
Storage Temperature (T-T) 60
UPC 611698118672
Color Black Height 9.8" Material Aluminum Weight 1.5lb Width 2.9"
Input Voltage 10-15V
Installation Type Commercial, Residential Length 9.8"
Limited Warranty 10-Year
Environmental Certification CE, RoHS, UL Environmentally Friendly Yes Features Compatible with Luxor technology, Die-cast aluminum, MR-16 lamp type, ProAim adjustability, Two-layer marine-grade anodization and powder coat finish Package Contents Hex Key,Mini-Mount Wall Bracket
