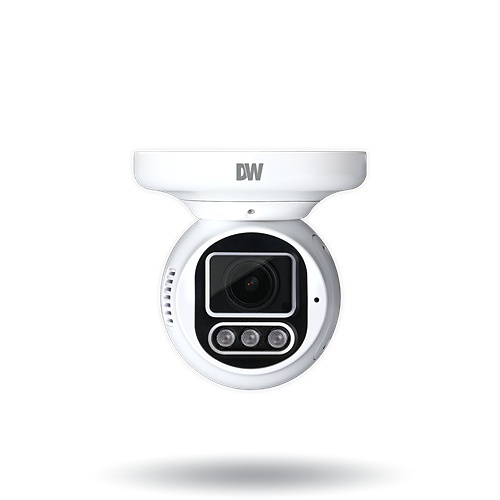

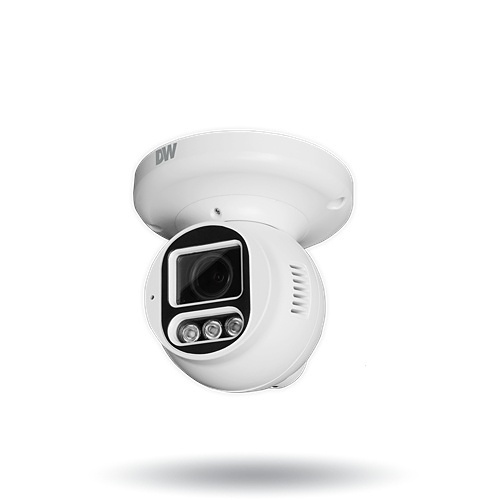

Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs
DWC-XSTD05MFC1
|6K-XSTD05MF1
Shop All Digital Watchdog
Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs
DWC-XSTD05MFC1 | 6K-XSTD05MF1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
DWC-XSTD05MFC1 is an all-in-one edge IP camera designed for proactive surveillance and intelligent threat response. Featuring a 5MP Star-Light Plus™ sensor, it delivers real-time 30fps color video even in near-total darkness. Its AI engine enables precise object detection across up to 40 zones, reducing false alarms and enhancing situational awareness. The camera integrates active deterrence tools—white light illumination, red/blue flashing LEDs, and two-way audio—alongside smart recording with up to 1TB onboard storage for 90 days of retention. With DW Spectrum® IPVMS pre-installed, motorized vari-focal lens control, and NDAA/TAA compliance, the DWC-XSTD05MFC1 offers a complete, server-free solution ideal for high-security environments like government, healthcare, and industrial facilities.
Main Features
- All-in-One Edge Solution: No need for NVRs or servers—recording, analytics, and management are built into the camera.
- Advanced AI Detection: AI engine accurately identifies people, vehicles, and objects across up to 40 zones, reducing false alarms.
- False Alarm Reduction: Intelligent filtering minimizes non-critical events, ensuring more accurate alerts and fewer distractions.
- Active Deterrence: White light illumination, red/blue flashing LEDs, and two-way audio help prevent incidents before they escalate.
- Superior Low-Light Performance: Star-Light Plus sensor captures full-color video in near-total darkness.
- Smart Storage: 1TB onboard storage supports up to 90 days of intelligent recording, filtering out non-events.
- Remote Lens Control: Motorized vari-focal lens with autofocus ensures optimal image clarity and flexibility.
- Instant Deployment: Pre-loaded with DW Spectrum IPVMS for automatic installation and licensing.
- Rugged & Compliant: IP67 and IK10-rated housing, NDAA/TAA compliant, backed by a 5-year warranty.
General Information
Name: Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs
Category: Digital Watchdog, Video Surveillance, IP Cameras, Turret Cameras
UPC Code: 812226039456
Country of Origin: Korea, Republic of. Country of origin is subject to change.
Specifications
ADI Part Number 6K-XSTD05MF1 Brand Name Digital Watchdog Cloud Capabilities Cloud Managed Manufacturer Digital Watchdog Manufacturer Part Number DWC-XSTD05MFC1 Product Line MEGApix Ai CloudCam Product Model DWC-XSTD05MFC1 Product Name MEGApix Ai CaaS 5MP turret edge IP camera with vari-focal lens, flash LEDs and AI engine Product Series X - Class Product Type IP Camera Supported Network Protocols IPv4
American Wire Gauge 18AWG Amperage 850.0mA Built-in Microphone Yes Effective Camera Resolution 5MP Field of View Horizontal, Vertical Lens Type Varifocal, Zoom Maximum Aperture f/1.3 Maximum Frame Rate 30fps Minimum Focal Length 2.7mm Motion Detection Yes Night Vision Yes Night Vision Type Visible-Light Illumination Output Voltage 12V DC Programmable Yes Protocols IPv4 Video Formats H.264 / AVC, H.265 / HEVC Wide Dynamic Range Yes
Image Sensor Type CMOS
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listing Ingress Protection Rating IP67
Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F Minimum Operating Temperature -4°F Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
Longest Shutter Speed 1/15 s Minimum Illumination 0.07lux Shortest Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
Focal Length 2.7-12mm Focus Modes Auto Focus, Manual Focus Lens Included Yes
License Quantity 1
Network Technology 100Base-T, 10Base-T
Color White Durability Weather Resistant Form Factor Turret Height 4.9" Material Aluminum Die-cast Weight 1.94lb Width 4.8"
Frequency 50Hz Input Voltage 12V DC
Limited Warranty 5-Year
Impact Protection Rating IK10
