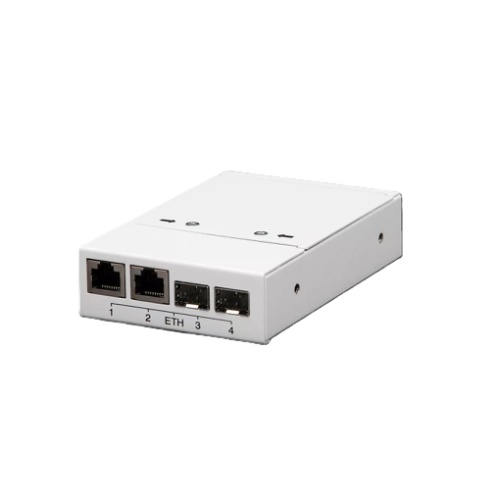

AXIS T8606 Transceiver/Media Converter
Shop all Axis Communications

AXIS T8606 4-Port Ethernet to Optical Fiber Media Converter Switch, 24VDC, 10/100Mbps, White

T8606|Z4-5901261
Shop all Axis Communications

AXIS T8606 4-Port Ethernet to Optical Fiber Media Converter Switch, 24VDC, 10/100Mbps, White

T8606|Z4-5901261

Sign In for Dealer Pricing

Become an ADI Customer
Axis Communications

AXIS T8606 4-Port Ethernet to Optical Fiber Media Converter Switch, 24VDC, 10/100Mbps, White

T8606 | Z4-5901261

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

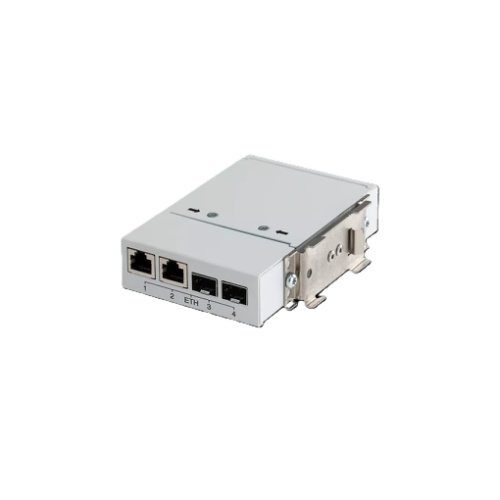

The media converter switch can be connected in a daisy chain network. The maximum number of cameras that can be connected in the daisy chain depends on the generated bit rate per camera. The limitations are the 100 Mbit link between camera and media converter switch, and the 1000 Mbit link between the media converter switches. AXIS T8606 does not feature IGMP Snooping. Fiber optic connections are typically used in city surveillance, airports and other long distance installations, where lighting strikes are a threat or great connection distances are required. Surveillance integrators in the field can also connect installation monitors and laptops to AXIS T8606 for camera maintenance and control. The media converter switch is compatible with all Axis network video products. The product connects to AXIS T8606 via RJ45, and the two SFP slots give installers the flexibility to connect the cameras cost-effectively to the network over long distances. The RJ45 connectors can also be used for connection to complementary cameras or temporarily to a laptop to service the system locally. AXIS T8606 can also fit AXIS T91A03 DIN Rail Clip A for easy DIN-mounted installation.

Main Features

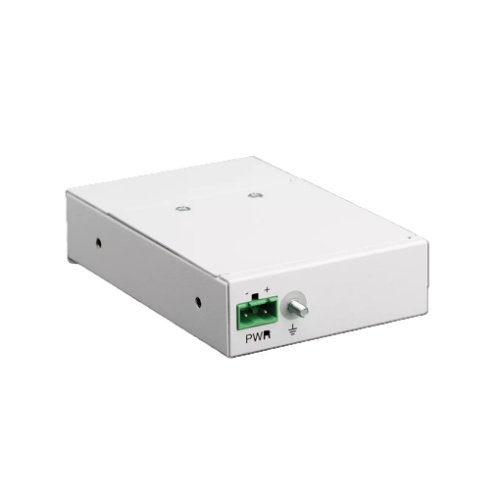

  • 24 V DC IN
  • Convert Ethernet to optical fiber
  • Compatible with Axis network video products
  • Support for 10/100 Mbps
  • Two SFP slots and two RJ45 ports

    • General Information

    Name:AXIS T8606 4-Port Ethernet to Optical Fiber Media Converter Switch, 24VDC, 10/100Mbps, White
    Category:Axis Communications, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:7331021058958
    Country of Origin:Poland. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Manufacturer Brochure
    Certification / Declaration
