AXIS TD8901 Single-Mode Fiber Module for up to 10 Km Transmission Range
TD8901|Z4-02630001
AXIS TD8901 Single-Mode Fiber Module for up to 10 Km Transmission Range
TD8901|Z4-02630001
Axis Communications
AXIS TD8901 Single-Mode Fiber Module for up to 10 Km Transmission Range
TD8901 | Z4-02630001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

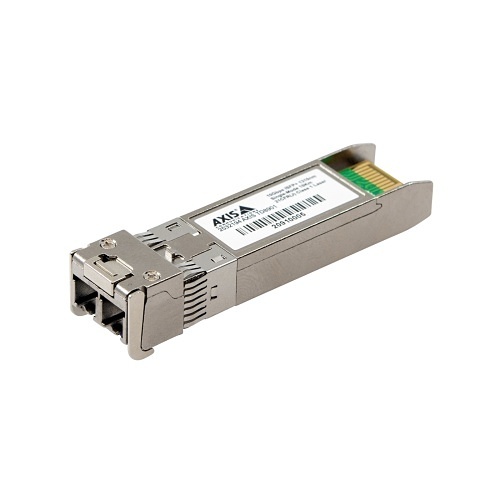

AXIS TD8901 SFP+ Module LC.LR.X is an enhanced small form-factor pluggable (SFP+) transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It is industrial grade with a wide temperature range, and it includes link-loss that enable network redundancy. Complying with SFP+ Multisource Agreement (MSA), it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Long wavelength (1.310 nm) DFB laser diodes enable data transmission up to 10 km on a single-mode 9/125 μm optical fiber. The module is tested and verified with Axis products.
Main Features
General Information
Name:AXIS TD8901 Single-Mode Fiber Module for up to 10 Km Transmission Range
Category:Axis Communications, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code:7331021080539
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02630001 Brand Name AXIS Communications Manufacturer Part Number 02630-001 Maximum Distance 32808.40' Product Model TD8901 Product Name AXIS TD8901 SFP+ MODULE LC.LR.X Product Type Media Converters
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber
NDAA Compliant Yes TAA Compliant Yes
Operating Temperature (T-T) -40-185°F
Connector Type LC/UPC
Security Features IEC/EN 60825-1 Class 1, IEC/EN 62368-1 ed.3, UL 62368-1 ed.3
Certifications EN 55032 Class B, EN 55035, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B, VCCI Class B
