AXIS TQ1003-E Wall Mount for Outdoor Fixed Box Cameras and Housings
02567-001|Z4-02567001
AXIS TQ1003-E Wall Mount for Outdoor Fixed Box Cameras and Housings
02567-001|Z4-02567001
Axis Communications
AXIS TQ1003-E Wall Mount for Outdoor Fixed Box Cameras and Housings
02567-001 | Z4-02567001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

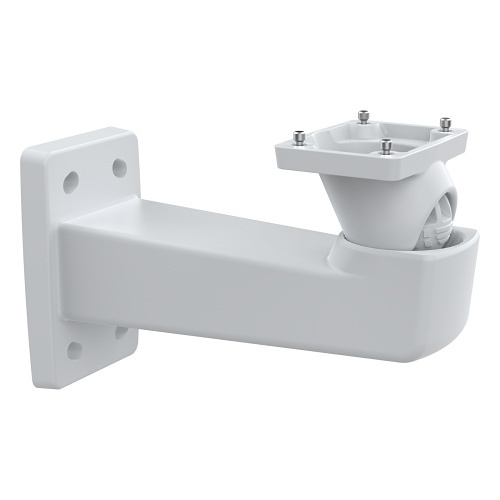

Highly robust and rotatable wall mount, made of aluminum, and compatible with all Axis outdoor fixed box cameras and housings. Corrosion tested according to NEMA 4X, UL listed and IK10 rated. When used together with AXIS T94R01P Conduit Back Box, the Ethernet cable can be routed through cable protection pipes/conduits along the wall (from the left or right).
Main Features
General Information
Name:AXIS TQ1003-E Wall Mount for Outdoor Fixed Box Cameras and Housings
Category:Axis Communications, Video Surveillance, Housings & Mounts, Camera Mounts
UPC Code:7331021079472
Country of Origin:China. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02567001 Brand Name AXIS Communications Manufacturer Part Number 02567-001 Product Name AXIS TQ1003-E Wall Mount Product Series TQ10 Product Type Mounts
Maximum Load Capacity 15.43 lb
Ingress Protection Rating IP66, IP67
ADI Part Number Replaces Z4-0217021, Z4-0217031, Z4-5505241 Model Number Replaces 0217-021, 0217-031, 5505-241
Depth 8.3" Height 5.5" Weight 1.53lb Width 3.1"
Finishing Powder Coat Mount Type Wall Mount
Compatibility Axis Cameras M1135-E MK II M1137-E MK II P1375-E P1377-LE P1378-LE Q1615-LE Mk III Q1656-BE Q1656-BLE Q1656-DLE Q1656-LE Environmental Certification IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X Features ±5° Rotation, 10° Tilt, Cable Management, Flexible, Pan Adjustment, Robust, Rotate Impact Protection Rating IK10 Indoor/Outdoor Outdoor
