West Penn 25227BWH1000 12-2 Stranded BC Unshielded Plenum Cable, 1000', White
25227BWH1000|WP-25227BWH1
West Penn 25227BWH1000 12-2 Stranded BC Unshielded Plenum Cable, 1000', White
25227BWH1000|WP-25227BWH1
West Penn Wire
West Penn 25227BWH1000 12-2 Stranded BC Unshielded Plenum Cable, 1000', White
25227BWH1000 | WP-25227BWH1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

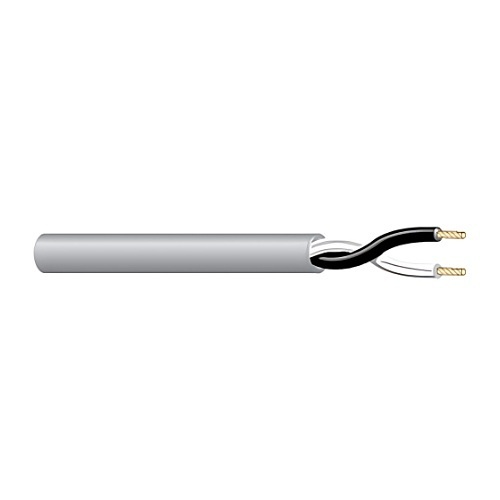

The West Penn Wire 25227B is a high-performance 1-pair, 12AWG unshielded cable designed for audio, control, and low voltage power applications. With 19x25 bare copper conductor stranding and a nominal DCR of 1.7 Ohm/1000', this 1000' white cable ensures efficient signal transmission and durability. It features a flexible plenum-rated PVC jacket and insulation, meeting CL3P (UL) standards for use in plenum spaces, and is RoHS compliant for environmental safety. The cable includes color-coded insulation (Black and Red), a nominal O.D. of 0.263", a bend radius of 2.367", and a pull tension rating of 146 lbs, making it ideal for demanding commercial installations.
Main Features
General Information
Name:West Penn 25227BWH1000 12-2 Stranded BC Unshielded Plenum Cable, 1000', White
Category:West Penn Wire, Wire & Cable, Speaker Cables, Plenum Audio Cables
UPC Code:612825046103
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number WP-25227BWH1 Brand Name West Penn Wire Manufacturer Part Number 25227BWH1000
Cable Rating Plenum Jacket Material PVC Shielding No
