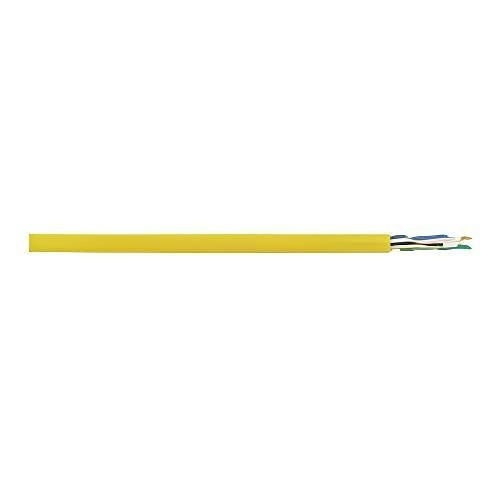

Superior Essex 6T-272-4A CAT6 Network Cable
6T-272-4A | UY-6T2724A
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6 F/UTP (ScTP) cable, with guaranteed performance out to 500 MHz, exceeds ANSI/TIA-568-C.2 for CAT6 cables. The cable is UL Verified CAT6 and has a typical Alien Crosstalk margin of 18 dB. The cable can be used for 10GBASE-T applications for up to 55m per ANSI/TIA/EIA-TSB-155. The cable consists of four (4) balanced 23AWG copper pairs around a flame-retardant cross-web. The core is wrapped with a Mylar-backed aluminum foil. A drain wire is applied longitudinally against the tape. The cable is then protected with a flexible riser or plenum-rated PVC jacket. Category 6 F/UTP (ScTP) is certified for HD A/V applications using HDBaseT Class A and B protocol.
Main Features
General Information
Name:Superior Essex 6T-272-4A CAT6 Network Cable
Category:Superior Essex, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number UY-6T2724A Brand Name Superior Essex Manufacturer Part Number 6T-272-4A
Cable Rating Riser
