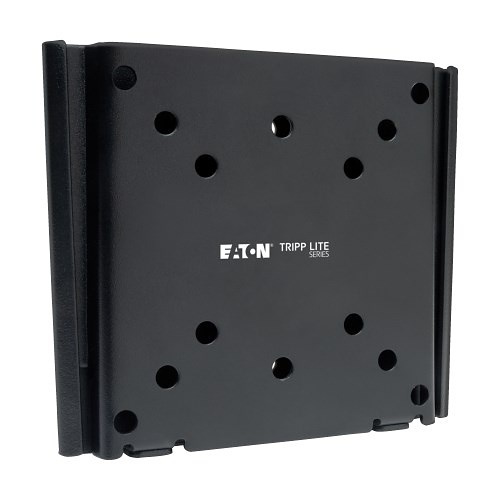

Eaton Tripp Lite DWF1327M Fixed Wall Mount for 13" to 27" TVs and Monitors
DWF1327M|TC-DWF1327M
Eaton Tripp Lite DWF1327M Fixed Wall Mount for 13" to 27" TVs and Monitors
DWF1327M|TC-DWF1327M
Eaton Tripp Lite
Eaton Tripp Lite DWF1327M Fixed Wall Mount for 13" to 27" TVs and Monitors
DWF1327M | TC-DWF1327M
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The VESA-compliant DWF1327M Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 13 to 27". The low-profile mount is concealed behind the display to give a sleek, professional appearance. The durable all-metal frame with scratch-resistant powder-coated finish supports up to 88 lbs (39.9 kgs). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 50x50mm, 75x75mm, 75x100mm, 75x200mm, 100x75mm, 100x100mm, 100x200mm, 200x75mm, 200x100mm, and 200x200mm.
Main Features
General Information
Name:Eaton Tripp Lite DWF1327M Fixed Wall Mount for 13" to 27" TVs and Monitors
Category:Eaton Tripp Lite, Pro AV, Commercial Displays, Pro Display Accessories & Mounts, ADI Pro Rewards
UPC Code:037332183484
Country of Origin:China. Country of origin is subject to change.
Specifications
ADI Part Number TC-DWF1327M Brand Name Eaton Tripp Lite Manufacturer Part Number DWF1327M Product Type Wall Mount
Material Metal Maximum Load Capacity 88 lb
VESA Mount Compatible Yes VESA Mount Standard 100 x 100, 50 x 50, 75 x 75
Maximum Screen Size Supported 27" Minimum Screen Size Supported 13" Number of Displays Supported 1
Limited Warranty 5-Year

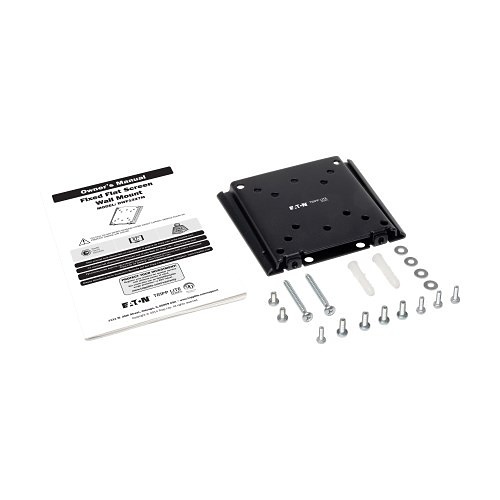

Country of Origin CN Package Contents - DWF1327M Fixed Wall Mount for 13 to 27 TVs and Monitor
- (2) M5 x 10 screws
- (4) M5 x 14 screws
- (4) M4 x 14 screws
- (4) D5 washers
- (2) Anchor bolts
- (2) Concrete anchors
- Owner's manual
