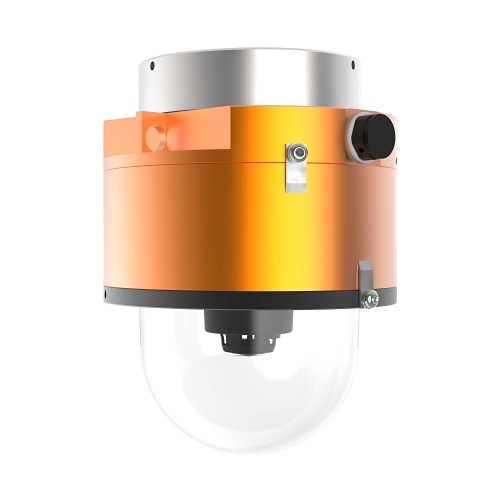

Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye Camera
TNM-XNF9013EPT3-Z|SQ-TMXNF9013
Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye Camera
TNM-XNF9013EPT3-Z|SQ-TMXNF9013
Hanwha Vision
Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye Camera
TNM-XNF9013EPT3-Z | SQ-TMXNF9013
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The TNM-XNF9013EPT3-Z is a cFMus Class I/II/III, Division 1 (Groups- B, C, D, E, F, G) and IECEx and ATEX Zone 1/21 (IIB+H2/IIIC) camera system. The housing is proudly designed and manufactured in the USA to exceed the highest global industry standards for safe operation in hazardous or potentially combustible environments and in the most extreme weather conditions. The TNM-XNF9013EPT3-Z utilizes an industry-first patented multi-chambered enclosure design, with an explosion-proof bulkhead used between chambers with each bulkhead including access ports to allow electrical / network connections to be safely passed through. The TNM-P9022EPT3-Z is designed with corrosion-resistant marine-grade aluminum with an IP66/67 Type 4X rating for protection against water / dust particles and is certified to withstand temperatures ranging from -20°C to +55°C. The enclosure also features a patented GORE-TEX Breather Drain membrane system incorporated into the housing design; air within the enclosure is allowed to equalize with the surrounding atmosphere, preventing interior condensation and negating any potential damage to the onboard electronics. The TNM-XNF9013EPT3-Z utilizes 802.3at Power over Ethernet (PoE+) for power and network connectivity, providing a flexible low-voltage install solution.
Main Features
General Information
Name:Hanwha TNM-XNF9013EPT3-Z Explosionproof Fisheye Camera
Category:Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number SQ-TMXNF9013 Brand Name Hanwha Vision Manufacturer Part Number TNM-XNF9013EPT3-Z
Effective Camera Resolution 2MP Field of View Horizontal, Vertical Maximum Aperture f/2.2 Maximum Frame Rate 30 fps Night Vision Yes Video Formats H.264, H.265
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66
Maximum Illumination 0.39 lux Maximum Video Resolution 3008 x 3008
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 95%
Minimum Illumination 0.39 lux
Focal Length 1.08mm Lens Included Yes Maximum Focal Length 1.08mm
Color Orange
Input Voltage 12V DC
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Features Classified Object Type: Person/Face/Vehicle/License Plate, Device Certificate (Root CA, Pre-Installed), Extreme WDR (2MP@60fps) By Scene Analysis and Local contrast Enhancement, Hard-coated dome bubble, Improved Image Quality, Object Detection: Virtual Line (Crossing Detection), Virtual Area (Loitering/Intrusion/Enter/Exit), Stereographic Type Fisheye Lens, Support Detection Shot
