STI SS2089PS-EN Stopper Station Button with Universal Stopper Cover, Horn, Surface Mount, Turn-to-Reset Illuminated, FUEL PUMP SHUT-DOWN Label, Red
SS2089PS-EN|SF-2089PSEN
STI SS2089PS-EN Stopper Station Button with Universal Stopper Cover, Horn, Surface Mount, Turn-to-Reset Illuminated, FUEL PUMP SHUT-DOWN Label, Red
SS2089PS-EN|SF-2089PSEN
Safety Technology International
STI SS2089PS-EN Stopper Station Button with Universal Stopper Cover, Horn, Surface Mount, Turn-to-Reset Illuminated, FUEL PUMP SHUT-DOWN Label, Red
SS2089PS-EN | SF-2089PSEN
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

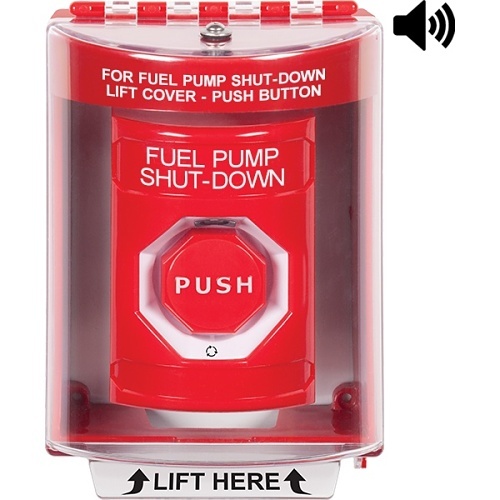

This Stopper® Station, turn-to-reset push button switch includes a Universal Stopper protective cover with an internal horn. The button is housed in a curved shell with FUEL PUMP SHUT-DOWN messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
General Information
Name:STI SS2089PS-EN Stopper Station Button with Universal Stopper Cover, Horn, Surface Mount, Turn-to-Reset Illuminated, FUEL PUMP SHUT-DOWN Label, Red
Category:Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code:662950519966
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2089PSEN Manufacturer Part Number SS2089PS-EN Product Line Stopper Station Product Model SS2089PS-EN Product Series SS2
Material Polycarbonate
Depth 1.62" Height 4.86" Width 3.22"
Limited Warranty 3-Year
