STI SS2079EV-EN Stopper Station Button with Universal Stopper Cover, Surface Mount, Turn-to-Reset Illuminated, EVACUATION Label, Red

SS2079EV-EN|SF-2079EVEN
Shop all Safety Technology International

STI SS2079EV-EN Stopper Station Button with Universal Stopper Cover, Surface Mount, Turn-to-Reset Illuminated, EVACUATION Label, Red

SS2079EV-EN|SF-2079EVEN

Sign In for Dealer Pricing

Become an ADI Customer
Safety Technology International

STI SS2079EV-EN Stopper Station Button with Universal Stopper Cover, Surface Mount, Turn-to-Reset Illuminated, EVACUATION Label, Red

SS2079EV-EN | SF-2079EVEN

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

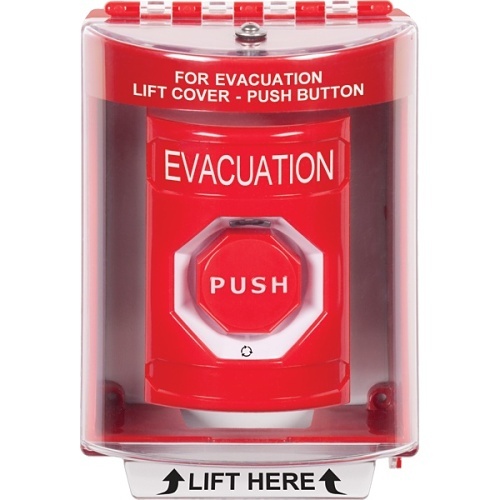

This Stopper® Station turn-to-reset push button switch, includes a surface mounted Universal Stopper protective cover. The button is housed in a curved shell with EVACUATION messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.

Main Features

  • Turn-to-Reset push button
  • Raised EVACUATION label
  • Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
  • Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
  • Protective cover helps protect button from damage and accidental activation
  • UL/cUL Listed
  • ADA Compliant

    • General Information

    Name:STI SS2079EV-EN Stopper Station Button with Universal Stopper Cover, Surface Mount, Turn-to-Reset Illuminated, EVACUATION Label, Red
    Category:Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
    UPC Code:662950512875
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
