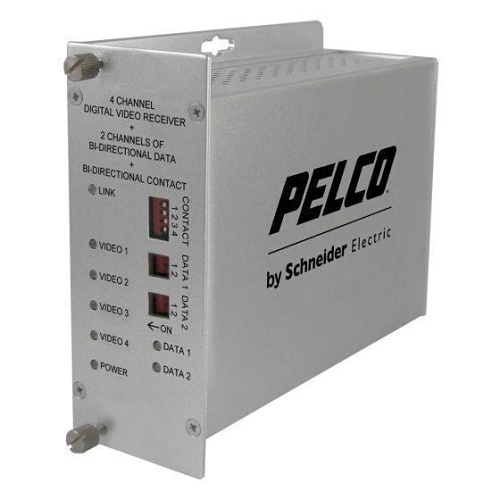

Pelco FRV40D2M1ST Fiber Receiver Module 4-Channel with RS-232/422/485 and Contact, ST Multimode
FRV40D2M1ST
|PE-RV40D2M1S
Pelco FRV40D2M1ST Fiber Receiver Module 4-Channel with RS-232/422/485 and Contact, ST Multimode
FRV40D2M1ST | PE-RV40D2M1S
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The FTV40D2/FRV40D2 fiber transmitter and receiver transmit four channels of unidirectional video, two channels of bidirectional data, and one bidirectional contact closure over one optical fiber in a two-slot wide design. The FTV40D2 transmitter and FRV40D2 receiver are available in multimode and single-mode versions.
The FTV40D2/FRV40D2 plug-and-play design ensures ease of installation and no electrical or optical adjustments are required. Modular in design, FTV40D2 and FRV40D2 units can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).
For stand-alone and wall mount installations, external power is required for the FTV40D2/FRV40D2 units. The units can be powered with the recommended FEXTPS fiber external power supply.
Main Features
- 10-Bit Digitally Encoded Video for High-Quality Transmission over a Single Fiber
- 2 Bidirectional Data Channels Support RS-232, RS-422 and RS-485 (2-wire/4-wire), Manchester, and Bi-Phase Communication
- 1 Bidirectional Contact Closure
- Multimode Fiber Support for Distances up to 2 km (1.2 mi)
- Exceeds All Requirements for the RS-250C Short-Haul Transmission Specification
- Laser Diode Technology provides efficient and effective transmission of optical signals
- Fully compatible with NTSC, PAL, and SECAM video standards
- Meets NEMA TS 1/TS 2 and Caltrans environmental standards
- Voltage Transient Protection safeguards all power and signal lines
- Hot-Swappable Rack Modules for easy replacement without downtime
General Information
Specifications
ADI Part Number PE-RV40D2M1S Brand Name Pelco by Motorola Solutions Manufacturer Motorola Manufacturer Part Number FRV40D2M1ST Product Type Video Extender Receiver
Connectivity Technology Wired
ADI Part Number Replaces PE-FR85041MS Model Number Replaces FR85041MSTR
Depth 6" Height 2" Width 5"
Mount Type Desktop Mount, Freestanding, Rack Mount, Surface Mount, Wall Mount
Country of Origin US
