Panduit DNFR18-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
DNFR18-250B-L|P9-FR18250BL
Panduit DNFR18-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
DNFR18-250B-L|P9-FR18250BL
Panduit
Panduit DNFR18-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
DNFR18-250B-L | P9-FR18250BL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

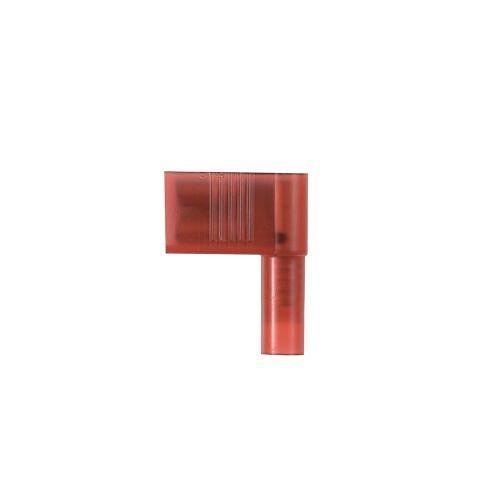

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.62" (15.7 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.
Main Features
General Information
Name:Panduit DNFR18-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
Category:Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code:074983124589
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-FR18250BL Brand Name Panduit Manufacturer Part Number DNFR18-250B-L Product Type Terminal Connector
American Wire Gauge 18AWG Material Brass
Color Red Depth 0.62" Weight 15.70lb Width 0.4"
Length 0.78"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Right-angled Connector
