Panduit DV14-250B-C Pan-Term Disconnect, 14-16 AWG, .25 x .032" Tab, Vinyl, Blue
DV14250BC|P9-DV14250BC
Panduit DV14-250B-C Pan-Term Disconnect, 14-16 AWG, .25 x .032" Tab, Vinyl, Blue
DV14250BC|P9-DV14250BC
Panduit
Panduit DV14-250B-C Pan-Term Disconnect, 14-16 AWG, .25 x .032" Tab, Vinyl, Blue
DV14250BC | P9-DV14250BC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

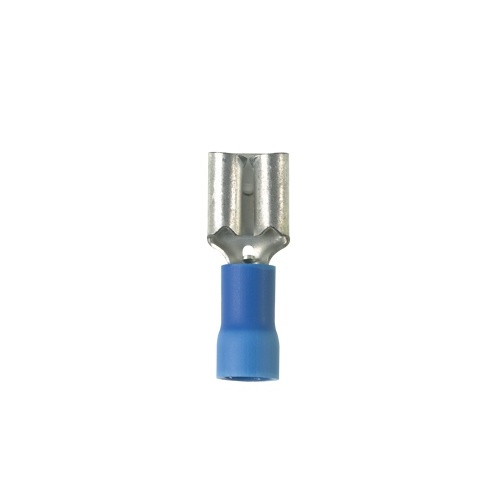

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Main Features
General Information
Name:Panduit DV14-250B-C Pan-Term Disconnect, 14-16 AWG, .25 x .032" Tab, Vinyl, Blue
Category:Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code:074983825387
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-DV14250BC Brand Name Panduit Manufacturer Part Number DV14250BC Packaged Quantity 100 Product Type Terminal Connector
Number of Contacts 10
Color Blue Width 0.3"
Limited Warranty 1-Year
