Nascom N82TXGG/STSD Indoor COM Single Pole Double Throw Relay Receiver NEO Wide Gap
N82TXGG/STSD
|J8-N82TXGGTD
Shop All Nascom
Nascom N82TXGG/STSD Indoor COM Single Pole Double Throw Relay Receiver NEO Wide Gap
N82TXGG/STSD | J8-N82TXGGTD
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

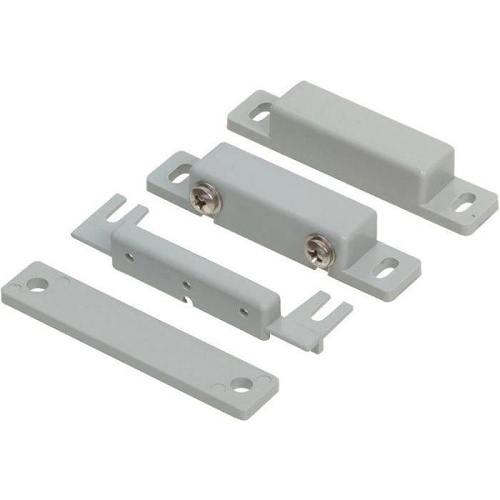

The N82TXGG-STSD from Nascom is a surface mount terminal SPDT switch / magnet set, cover and spacers, gray. The N82TXG surface mount screw terminal contacts protects all doors and windows, including steel doors, in commercial settings. The N82TXG is the installer's choice of contact configuration where extra wide air and side-to-side gap are required to prevent false alarms caused by shifting or warping doors and windows.
Main Features
General Information
Name: Nascom N82TXGG/STSD Indoor COM Single Pole Double Throw Relay Receiver NEO Wide Gap
Category: Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N82TXGGTD Brand Name Nascom Manufacturer Part Number N82TXGG/STSD
Color Gray
Input Voltage 30V DC
Contact Type Single Pole Double Throw (SPDT)
Environmental Certification UL Environmentally Friendly Yes Features ABS HOUSING, Encapsulated Hermetically Sealed Contacts, Extra Wide Gap - N35 Ndfeb Rare Earth Magnet, Listed To Ul634 Standard, SPACER FOR STEEL DOOR INSTALLS
