Nascom
Nascom N78CW/STHS High Strength Connector, 3/4", White
N78CW/STHS | J8-N78CWSTHS
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

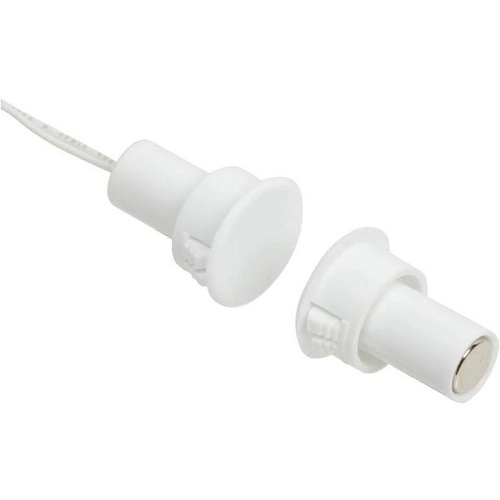

The N78CW-STHS from Nascom is a recessed 3/4" high security switch/magnet set for steel/wood doors, wire leads, white. The N78C Series is a 3/4" recessed wide gap door contact designed for residential, commercial and industrial steel and wood door applications. The N78C is the installer's choice of contact configuration because the contact set is designed to cut installation times and helps to prevent false alarms caused by shifting or warping doors. The N78C Series is designed for installation in every type of hinged door including wood doors.
Main Features
General Information
Name:Nascom N78CW/STHS High Strength Connector, 3/4", White
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N78CWSTHS Brand Name Nascom Manufacturer Part Number N78CW/STHS
Color White
Input Voltage 300V DC
Contact Type Closed Loop
Environmental Certification UL Environmentally Friendly Yes Features 12” 22Awg Wire Lead, Encapsulated Hermetically Sealed Contacts, Listed To Ul634 Standard, Polypropylene Housings, Snap Fit On Steel - No Glue Required, Wide Gap - N35 Ndfeb Rare Earth Magnet
