Product Overview

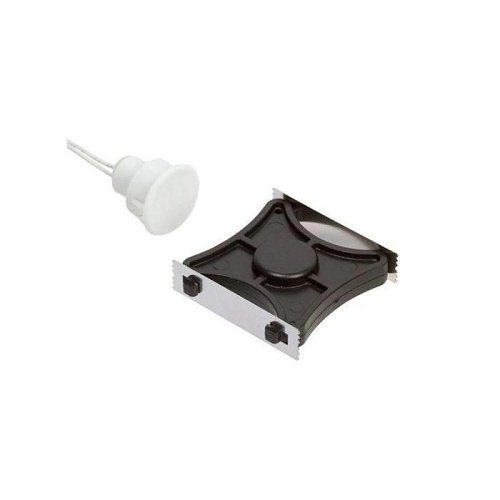

The N1178CWSHK-STDD from Nascom is a recessed 3/4" stubby DPDT switch for steel / wood doors, shark magnet, wire leads, white. The N1178C SHK Series is a 3/4" recessed stubby door contact couple with the patented SHARKTM magnet. The set is designed for residential, commercial and industrial steel and wood door applications. The N1178C SHK is the installer's choice of contact configuration because the contact set is designed to cut installation times just a pinch of the springs installs the SHARKTM magnet permanently and the powerful rare earth magnet helps to prevent false alarms caused by shifting or warping doors. The N1178C SHK Series is designed for installation in every type of hinged door including wood doors.
Main Features
General Information
Name:Nascom N1178CWSHK/STDD 3/4" Stub Double Pole Double Throw Relay, 12", Shark
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:850022249198
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N78CHKTD Brand Name Nascom Manufacturer Part Number N1178CWSHK/STDD
Color White
Contact Type Double Pole Double Throw (DPDT)
Environmental Certification UL Environmentally Friendly Yes Features 12" 22Awg Wire Leads, Encapsulated Hermetically Sealed Contacts, Listed To Ul634 Standard, NO SILICONE REQUIRED, NO MESS, Polypropylene Switch Housing, Snap Fit On Steel - No Glue Required, Time Saving Installation, Wide Gap - N35 Ndfeb Rare Earth Magnet
