Nascom N505AUTM/STFB Rail Mount Flip Outlet, 2.25", 24A AC
N505AUTM/STFB | J8-N55UTMTFB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

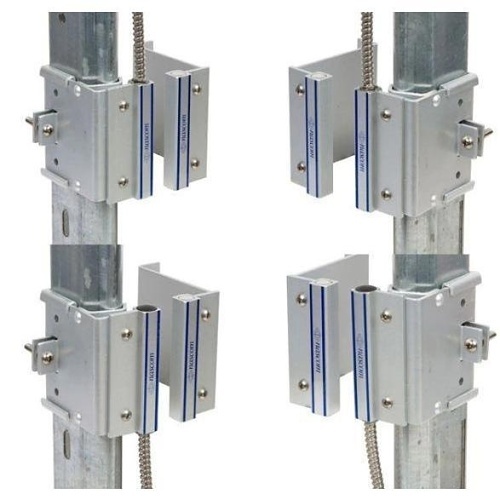

The N505AUTM-STFB from Nascom is a 2-1/4" overhead door rail mount open loop magnet / switch set featuring No Dead Spot technology, silver. The N505AUTM 2 1/4" TRACK MOUNT FLIP SWITCH with universal magnet handles commercial and industrial overhead door applications. The TRACK MOUNT FLIP SWITCH combines the installer's choice of contact configuration with an N35 grade NdFeB magnet for maximum gap performance. The closed loop versions of the N505AUTM prevents false alarms caused by the up and down movement of overhead doors with our unique NO DEAD SPOT technology. The switch can be mounted with the cable in either direction, without loss of gap.
Main Features
General Information
Name:Nascom N505AUTM/STFB Rail Mount Flip Outlet, 2.25", 24A AC
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:850022249006
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N55UTMTFB Brand Name Nascom Manufacturer Part Number N505AUTM/STFB
Armored Yes
Color Clear Anodized
Input Current 0.2A Input Voltage 30V DC
Contact Type Open Loop
Environmental Certification UL Environmentally Friendly Yes Features 24" STAINLESS STEEL ARMORED CABLE LEAD PROTECTION, 36" 22AWG WIRE LEADS, EXTRUDED ANNODIZED (TYPE II) ALUMINUM, FLIP THE SWITCH - GAP IS NOT IMPACTED BY CABLE DIRECTION, Listed To Ul634 Standard, NO DEAD SPOT Technology, QUICK SWITCH NSTALL - LESS THAN 60 SECONDS, Universal Mount
