Nascom N505AUTMC/STHS 3 Rail Mount Flip High-Speed Connector Receiver, 24
N505AUTMC/STHS|J8-N55UTMCTH
Nascom N505AUTMC/STHS 3 Rail Mount Flip High-Speed Connector Receiver, 24
N505AUTMC/STHS|J8-N55UTMCTH
Nascom
Nascom N505AUTMC/STHS 3 Rail Mount Flip High-Speed Connector Receiver, 24
N505AUTMC/STHS | J8-N55UTMCTH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

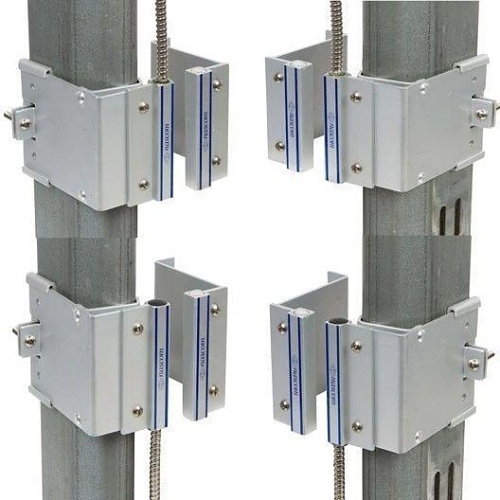

The N505AUTMC-STHS from Nascom is an overhead door rail (2-1/4") mount single pole dble throw magnet/switch set - no dead spot. Nascom's N505AUTM 3" TRACK MOUNT FLIP SWITCH with universal magnet handles commercial and industrial overhead door applications. The TRACK MOUNT FLIP SWITCH combines the installer's choice of contact configuration with an N35 grade NdFeB magnet for maximum gap performance. The closed loop versions of the N505AUTMC prevent false alarms caused by the up and down movement of overhead doors with our unique NO DEAD SPOT technology. The switch can be mounted with the cable in either direction, without loss of gap.
Main Features
General Information
Name:Nascom N505AUTMC/STHS 3 Rail Mount Flip High-Speed Connector Receiver, 24
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N55UTMCTH Brand Name Nascom Manufacturer Part Number N505AUTMC/STHS
Armored Yes
Color Clear Anodized
Contact Type Closed Loop
Environmental Certification UL Environmentally Friendly Yes Features 24" STAINLESS STEEL ARMORED CABLE LEAD PROTECTION, 36" 22Awg Wire Leads, EXTRUDED ANNODIZED (TYPE II) ALUMINUM, FLIP THE SWITCH - GAP IS NOT IMPACTED BY CABLE DIRECTION, Listed To Ul634 Standard, No Dead Spot Technology, QUICK SWITCH NSTALL - LESS THAN 60 SECONDS, Universal Mount
