Nascom
Nascom N505AU/SWDD Flip Switch DPDT 24" AC
N505AU/SWDD | J8-N55AUSWDD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

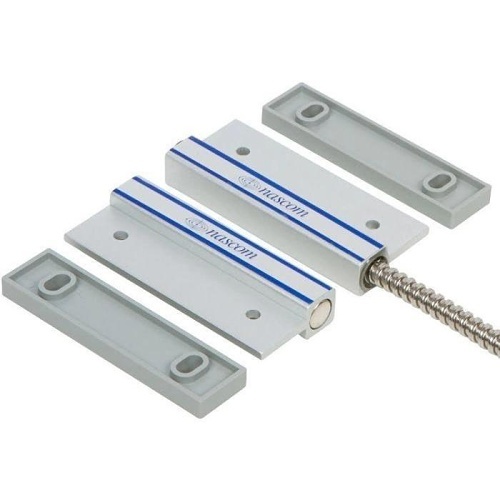

The N505AU-SWDD from Nascom is a man door surface mount aluminum steel door DPDT switch only, silver. The award winning N505AU FLIP SWITCH is perfect for man doors. The unique flip option allows the switch to be mounted with the cable in either direction, without loss of gap. The FLIP SWITCH combines the installers choice of contact configuration with an N35 NdFeB magnet for maximum gap performance. NO DEAD SPOT technology, in the N505AU closed loop versions, prevent false alarms caused by door misalignment.
Main Features
General Information
Name:Nascom N505AU/SWDD Flip Switch DPDT 24" AC
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N55AUSWDD Brand Name Nascom Manufacturer Part Number N505AU/SWDD
Armored Yes
Color Clear Anodized
Environmental Certification UL Environmentally Friendly Yes Features 24" Armored Cable Lead Protection, 36" 22Awg Wire Leads, EXTRA WIDE GAP - N35 NdFeB RARE EARTH MAGNET, Extruded Anodized (Type II) Aluminum, Fast and Easy Installation, Listed To Ul634 Standard, No Dead Spot Technology, Universal Mount
