Nascom
Nascom N505AS/ST036 Shorty Mite Clear RX/NEO 36" AC
N505AS/ST036 | J8-N55ASST36
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

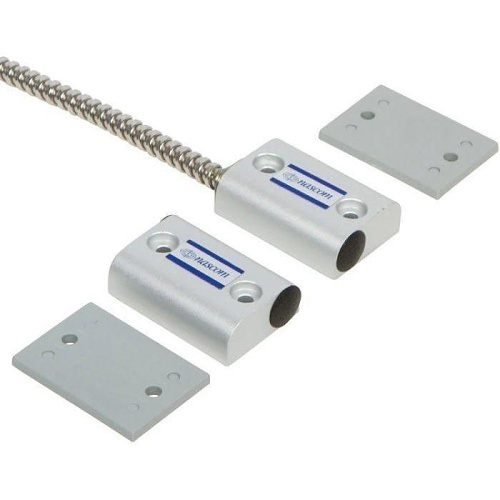

The N505AS-ST036 from Nascom is a N505AS short set with 3 foot armored cable. Nascom's N505AS is a short, 2' block switch, designed for man doors. It combines the installer's choice of contact configuration with an N35 NdFeB magnet for maximum gap performance. The closed loop version of the N505AS prevents false alarms caused by warping or shifting of doors, and features our unique NO DEAD SPOT technology.
Main Features
General Information
Name:Nascom N505AS/ST036 Shorty Mite Clear RX/NEO 36" AC
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N55ASST36 Brand Name Nascom Manufacturer Part Number N505AS/ST036
Armored Yes
Color Clear Anodized
Contact Type Closed Loop
Environmental Certification UL Environmentally Friendly Yes Features 24" Armored Cable Lead Protection, 36" 22Awg Wire Leads, EXTRA WIDE GAP - N35 NdFeB RARE EARTH MAGNET, Extruded Anodized (Type II) Aluminum, Listed To Ul634 Standard, No Dead Spot Technology
