Nascom N1178CG/SWDD 3/4" Stub PTF DPDT Relay, 12", Black
N1178CG/SWDD | J8-N1178CGDD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

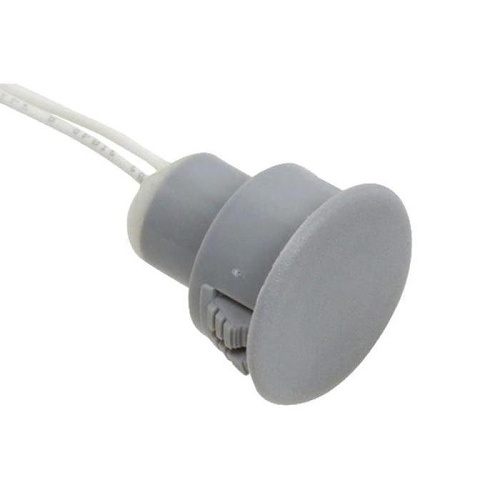

The N1178CG-SWDD from Nascom is a recessed 3/4" stubby DPDT switch for steel / wood doors, wire leads, gray. The N1178C Series is a 3/4" recessed wide gap stubby door contact designed for residential, commercial and industrial steel and wood door applications. The N1178C is the installer's choice of contact configuration because the contact set is designed to cut installation times and helps to prevent false alarms caused by shifting or warping doors. The N1178C Series is designed for installation in every type of hinged door including wood doors.
Main Features
General Information
Name:Nascom N1178CG/SWDD 3/4" Stub PTF DPDT Relay, 12", Black
Category:Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin:Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N1178CGDD Brand Name Nascom Manufacturer Part Number N1178CG/SWDD
Color Gray
Environmental Certification UL Environmentally Friendly Yes Features 12" 22Awg Wire Leads, Encapsulated Hermetically Sealed Contacts, Listed To Ul634 Standard, Polypropylene Housings, Snap Fit On Steel - No Glue Required, Wide Gap - N35 Ndfeb Rare Earth Magnet
