ICC ICMPP024U6 24-Port Rackmount 6P6C with 19" Telephone Network Patch Panel and Rear UTP USOC Wiring 110 IDC Terminal Blocks for PBX and Business Phone Systems, UL Listed, Black
ICMPP024U6
|H2-MPP024U6
Shop All ICC
ICC ICMPP024U6 24-Port Rackmount 6P6C with 19" Telephone Network Patch Panel and Rear UTP USOC Wiring 110 IDC Terminal Blocks for PBX and Business Phone Systems, UL Listed, Black
ICMPP024U6 | H2-MPP024U6
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The ICC 24-Port Voice Patch Panel is built to provide efficient voice communication for PBX and business phone systems. Featuring 50 micro-inch gold-plated contacts, this patch panel supports up to 750 plug-to-jack cycles, ensuring reliable performance. Designed with 110 IDC termination and color-coded USOC wiring diagrams, installation is streamlined and easy. The durable jack housing is made from flame-retardant plastic, UL 94V-0 rated for safety, and compliant with TIA CAT 3 standards. Constructed with a 16-gauge cold-rolled steel frame, this 1U panel fits standard 19" EIA racks, making it a robust solution for voice networks.
Main Features
- ENHANCED VOICE-GRADE NETWORK: ICC's Voice Patch Panels are engineered with 50 micro-inch gold-plated, high-retention 6-Position 6-Conductor contacts, supporting up to 750 plug-to-jack mating cycles, ensuring efficient operation in business phone systems and complex voice network environments
- EFFICIENT INSTALLATION: Featuring 110 IDC termination for reduced installation time, with numbered ports and color-coded 6-wire UTP / USOC wiring diagrams for quick reference
- DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing is constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) with durable phosphor bronze spring wire and 110 connectors plated with 100 micro-inches of nickel alloy. UL listed for fire safety compliance and TAA compliant
- SUPERIOR SIGNAL QUALITY: Tested to meet or exceed TIA CAT 3 performance standards, delivering reliable and clear voice communication
- EFFICIENT INSTALLATION AND DURABLE MATERIALS: Constructed with 16-gauge cold-rolled steel (16 GA CRS), this fixed patch panel fits standard 19" EIA racks and cabinets, occupying 1U (1.75") of rack space
General Information
Name: ICC ICMPP024U6 24-Port Rackmount 6P6C with 19" Telephone Network Patch Panel and Rear UTP USOC Wiring 110 IDC Terminal Blocks for PBX and Business Phone Systems, UL Listed, Black
Category: ICC, Data Comm & Networking, Patch Panels, Network Patch Panels
UPC Code: 633758006927
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number H2-MPP024U6 Brand Name ICC Connector Gender Female Country of Origin TW Manufacturer ICC Manufacturer Part Number ICMPP024U6 Product Name Voice Grade 24-Port USOC 6P6C Patch Panel, 1 RMS Product Type Phone Patch Panel
TAA Compliant Yes
Connector Type RJ47 Number of Ports 24 Number of RJ-11 Ports 24
Color Black Compatible Rack Unit 1U Compatible Rack Width 19.0" Depth 1.40" Form Factor Rack Mount Material CRS, Gold, Phosphor Bronze, Plastic
Length 19.00" Mount Type Rack Mount

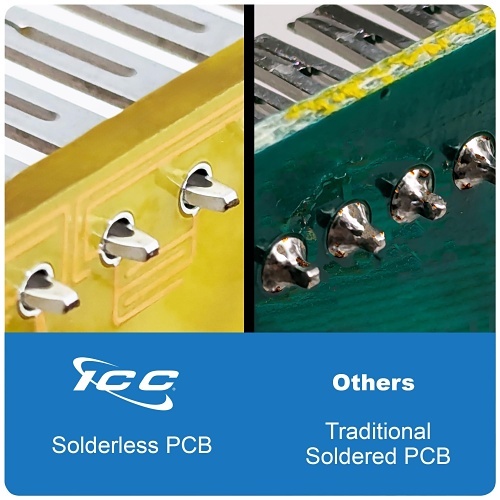

Features Solderless PCB to prevent intermittent connections caused by punch-down termination. Indoor/Outdoor Indoor Package Contents - Voice Grade 24-Port USOC 6P6C Patch Panel, 1 RMS
- 5 x 6" Cable Tie
- 4 x #24-12 x 5/8" Pan Head, Pilot Point Machine Screw
- 1 x Sheet Installation Instructions
