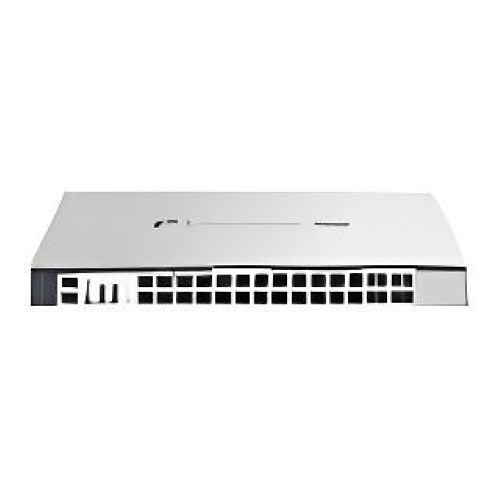

TP-Link S7500-24Y4C Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots

S7500-24Y4C|FP-S750024Y4
Shop all TP-Link

TP-Link S7500-24Y4C Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots

S7500-24Y4C|FP-S750024Y4

Sign In for Dealer Pricing

Become an ADI Customer
TP-Link

TP-Link S7500-24Y4C Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots

S7500-24Y4C | FP-S750024Y4

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The TP‑Link Omada S7500‑24Y4C is a high-performance, stackable L3 managed switch featuring 24× 25 G SFP28 and 4× 100 G QSFP28 ports, dual hot-swappable power supplies, and rich Layer 3 routing (OSPF, BGP, VRRP, ECMP, PIM). It supports physical stacking (up to 800 Gbps), centralized Omada Pro cloud management, and enterprise-grade security—ideal for aggregation/core use in large-scale SMB, campus, or ISP networks.

Main Features

  • 24× 25 Gbps SFP28 slots and 4× 100 Gbps QSFP28 slots
  • Physical stacking for built-in redundancy and performance
  • L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
  • Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
  • Highly available with two field-replaceable power supplies, VRRP, ERPS, BFD
  • Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
  • Centralized cloud management via the web or the Omada app

    • General Information

    Name:TP-Link S7500-24Y4C Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots
    Category:TP-Link, Data Comm & Networking, Hubs, Routers & Switches, Modems & Routers, ADI Pro Rewards
    UPC Code:840030711220
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
