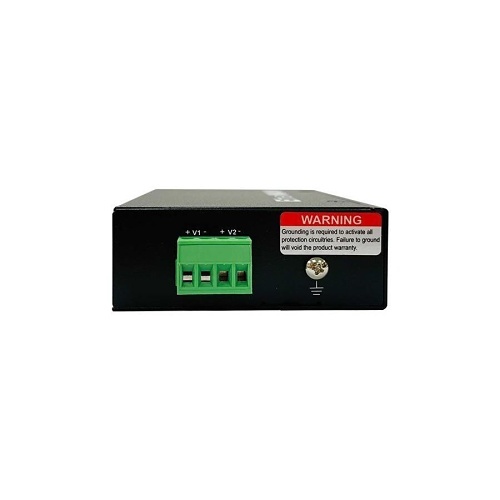

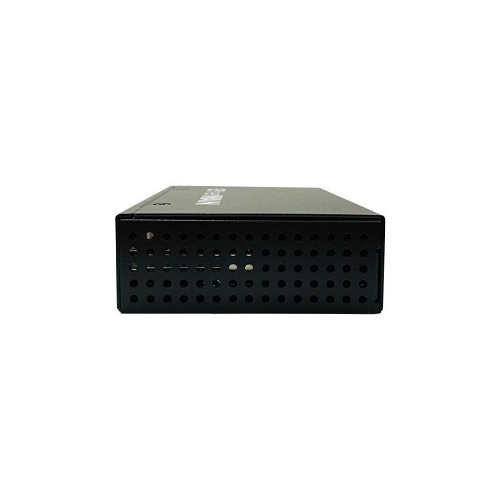

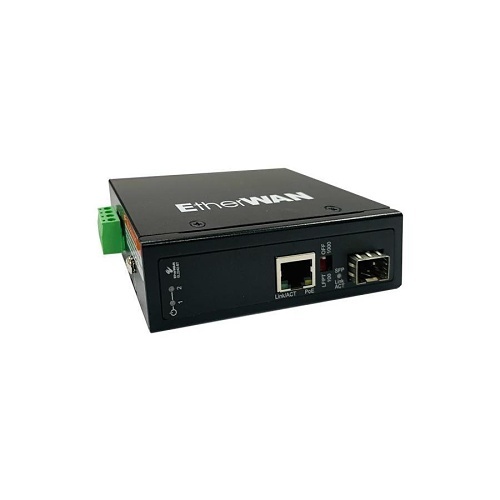

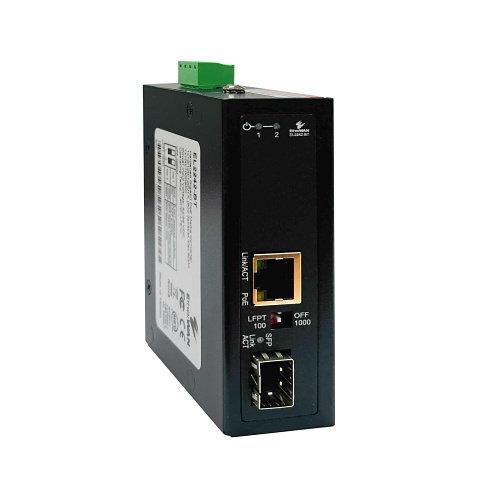

EtherWAN EL2242-BT Hardened Gigabit 90W PoE Media Converter

EL2242-BT | ET-EL2242BT

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

EtherWAN’s EL2242-BT is a compact hardened DIN-rail mounted PoE Media Converter. Using the latest IEEE 802.3bt PoE technology providing up to 90W power output and an 100/1000 SFP Slot, the EL2242-BT provides the solution required to integrate remote PoE devices such as IP cameras, LED lights, wireless access point, and other network devices into non-PoE networks for reliable operation even in harsh environments.

Main Features

  • Supports IEEE 802.3bt PoE/PSE standard, up to 90W
  • Backward compatible with IEEE 802.3at and 802.3af
  • Fanless operation with wide operating temperature range of -40°C to 75°C
  • High impact, thermal shock, and electrical noise resistance
  • Simple, DIP switch controlled for speed setting
  • SFP port supports 100/1000BASE-X for fiber connectivity
  • Complimentary technical support
  • Limited lifetime warranty

    • General Information

    Name:EtherWAN EL2242-BT Hardened Gigabit 90W PoE Media Converter
    Category:EtherWAN, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
