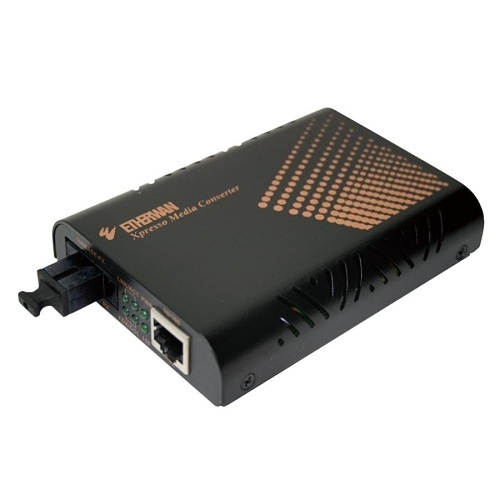

Image of ET-EL200CA20
Shop all EtherWAN

EtherWAN EL200CA-20 Media Converter EL200CA-2 WDM-TX: 1310nm/RX: 1550nm-20Km

EL200CA-20|ET-EL200CA20
Shop all EtherWAN

EtherWAN EL200CA-20 Media Converter EL200CA-2 WDM-TX: 1310nm/RX: 1550nm-20Km

EL200CA-20|ET-EL200CA20

Sign In for Dealer Pricing

Become an ADI Customer
EtherWAN

EtherWAN EL200CA-20 Media Converter EL200CA-2 WDM-TX: 1310nm/RX: 1550nm-20Km

EL200CA-20 | ET-EL200CA20

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The EL200 / EL210 Series provides media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design facilitates network infrastructure construction. Through DIP switch selection, LinkFault-Pass-Through (LFPT) function can be active or disabled. The EL200 / EL210 series is designed for WDM fiber connection applications. This commercial grade media converter supports EtherWAN EMC1600 chassis system for easy group installation. The EL200 / EL210 is the ideal media converter for enterprise environments.

Main Features

  • Supports multi-mode and single mode fiber with WDM fiber port
  • Store-and-forward mode or converter mode selectable (default: store-and-forward mode)
  • LFPT function lets network operators be aware of network connection status
  • Link-fault-pass-through enable or disable
  • Full-duplex or half-duplex of Ethernet port and fiber port enable or disable
  • Forward/Filtering Rate 14,880pps for 10Mbps 148,810pps for 100Mbps
  • Power Input 12V DC
  • Power Consumption 1.92W max. 0.16A@12VDC
  • Wall mounting, or in EMC1600 Chassis System
  • LED power indicator

    • General Information

    Name:EtherWAN EL200CA-20 Media Converter EL200CA-2 WDM-TX: 1310nm/RX: 1550nm-20Km
    Category:EtherWAN, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:847653000410
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
