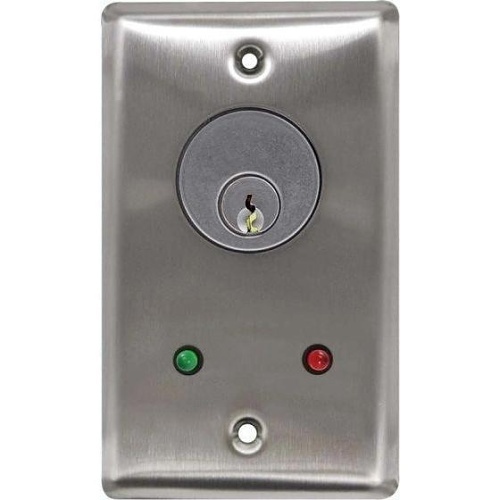

Camden CM-1270-7212-60KD Stainless Steel Key Switch, Single Gang, SPDT, Manager
CM-1270-7212-60KD
|CM-127072126
Shop All Camden Door Controls
Camden CM-1270-7212-60KD Stainless Steel Key Switch, Single Gang, SPDT, Manager
CM-1270-7212-60KD | CM-127072126
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Camden Tough' stainless steel key switches are available in narrow and single gang widths. The pre-assembled switch mounting bracket is designed to minimize installation time. They accept virtually any 1" - 1.25" mortise cylinder and cam.
Specifications
ADI Part Number CM-127072126 Brand Name Camden Door Controls Manufacturer Part Number CM-1270-7212-60KD Product Series CM-1200 & CM-2200 Product Type Key Switches - Stainless Steel, Flush mount
Maximum Operating Temperature 85°F Minimum Operating Temperature 32°F
Depth 1.62" Height 4.5" Width 2.75"
Contact Type SPDT
Limited Warranty 3-Year
Features Accepts standard mortise cylinders, 1" - 1-1/4", Heavy duty stainless steel faceplate, Indoor or outdoor application, Left and/or right operation, Locators prevent cylinders from spinning, Tamper proof screws supplied
