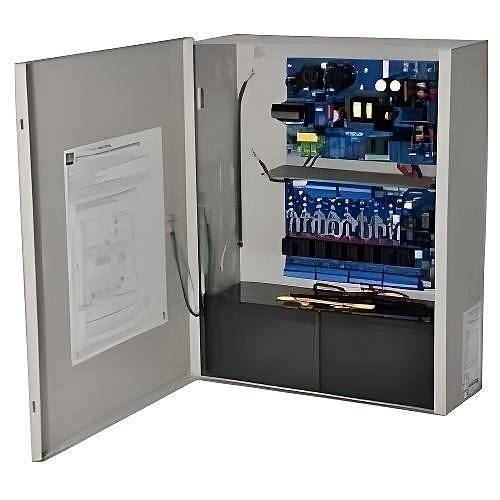

Image of AX-A4ACMCB22
Shop all Altronix

Altronix AL400ACMCB220 Access Power Controller with Power Supply Charger, PTC Class Relay Outputs, 12/24VDC at 4A, FAI, 220VAC, BC400 Enclosure

AL400ACMCB220|AX-A4ACMCB22
Shop all Altronix

Altronix AL400ACMCB220 Access Power Controller with Power Supply Charger, PTC Class Relay Outputs, 12/24VDC at 4A, FAI, 220VAC, BC400 Enclosure

AL400ACMCB220|AX-A4ACMCB22

Sign In for Dealer Pricing

Become an ADI Customer
Altronix

Altronix AL400ACMCB220 Access Power Controller with Power Supply Charger, PTC Class Relay Outputs, 12/24VDC at 4A, FAI, 220VAC, BC400 Enclosure

AL400ACMCB220 | AX-A4ACMCB22

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Introducing the Altronix AL400ACMCB220 Access Power Controller, a versatile solution for your access control needs. This unit efficiently transforms a standard 220V AC input into eight independently managed 12V DC or 24V DC outputs, delivering a robust 4A at 12V DC or 3A at 24V DC. Designed for seamless integration with various access control devices, it supports both Fail-Safe and Fail-Secure modes. The FACP Interface enhances safety with emergency egress and alarm monitoring capabilities. With its dual power source option, you can ensure reliable operation for both the controller and locking devices. Elevate your security system today with the Altronix AL400ACMCB220! Order now to secure your premises.

Main Features

  • 8-Independently controlled Fail-Safe and/or Fail-Secure power outputs
  • 8-Auxiliary power outputs (unswitched)
  • Output PTCs are rated at 2.5A
  • Filtered and electronically regulated outputs
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the 8-Outputs
  • Alarm output relay indicates that FACP input is triggered
  • Built-in charger for sealed lead acid or gel type batteries
  • Instantaneous transfer to stand-by batteries
  • CE European Conformity

    • General Information

    Name:Altronix AL400ACMCB220 Access Power Controller with Power Supply Charger, PTC Class Relay Outputs, 12/24VDC at 4A, FAI, 220VAC, BC400 Enclosure
    Category:Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
    UPC Code:782239951017
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
