AV Pro Edge AC-BTSSF-USB3-HUB-40 USB 3.1 Extension Cable with Hub, 40m

AC-BTSSF-USB3-HUB-40|8A-USB3HUB40

AV Pro Edge AC-BTSSF-USB3-HUB-40 USB 3.1 Extension Cable with Hub, 40m

AC-BTSSF-USB3-HUB-40|8A-USB3HUB40

Sign In for Dealer Pricing

Become an ADI Customer
AV Pro Edge

AV Pro Edge AC-BTSSF-USB3-HUB-40 USB 3.1 Extension Cable with Hub, 40m

AC-BTSSF-USB3-HUB-40 | 8A-USB3HUB40

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

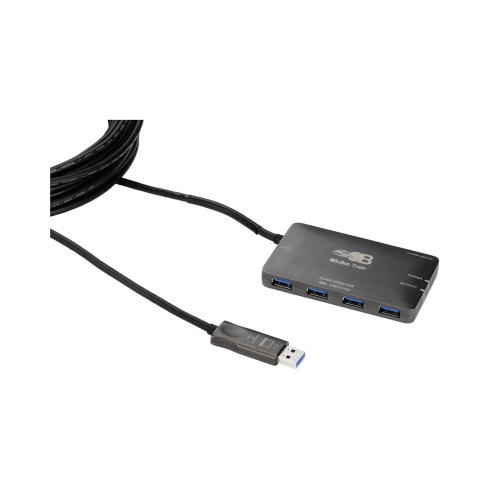

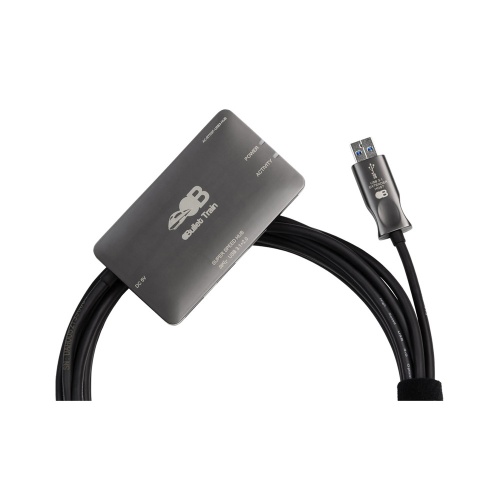

The Bullet Train USB 3.1 Extension Cable with Hub is designed to extend and manage multiple USB connections through a single cable, supporting USB 3.1, 3.0, and 2.0 standards. It features four active USB-A female ports and allows extension of up to 40 meters, utilizing Cleerline SSF fiber optics for high-quality signal transmission. Certified to UL 444, CSA C22.2 No. 214, CE, FCC, ISF, and compliant with RoHS, this cable is suitable for education, corporate offices, retail, hospitality, and luxury homes. The cable also includes a micro USB port for power, enabling full USB 3.1 hub functionality, and supports UVC for video and UAC for audio devices, making it ideal for video conferencing with up to four 4K cameras.

Main Features

  • Four active USB-A female ports
  • Up to 40 meter extension range
  • USB 3.1 Gen 1 support
  • CL2/CL3 in-wall rating
  • Built with Cleerline SSF fiber optics
  • 5 mm bend radius
  • Extremely strong pull capacity with Kevlar
  • Supports UVC devices for video
  • Supports UAC devices for audio
  • Compliant with UL 444/CSA C22.2 No. 214, CE, FCC, ISF, RoHS standards
  • General Information

    Name:AV Pro Edge AC-BTSSF-USB3-HUB-40 USB 3.1 Extension Cable with Hub, 40m
    Category:AV Pro Edge, Pro AV, Commercial Connector Cables, Pro USB Cables
    UPC Code:850015330797
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources
