AV Pro Edge AC-BTSSF-USB3-HUB-30 USB 3.1 Extension Cable with Hub, 30m

AC-BTSSF-USB3-HUB-30|8A-USB3HUB30

AV Pro Edge AC-BTSSF-USB3-HUB-30 USB 3.1 Extension Cable with Hub, 30m

AC-BTSSF-USB3-HUB-30|8A-USB3HUB30

Sign In for Dealer Pricing

Become an ADI Customer
Image of 8A-USB3HUB30
AV Pro Edge

AV Pro Edge AC-BTSSF-USB3-HUB-30 USB 3.1 Extension Cable with Hub, 30m

AC-BTSSF-USB3-HUB-30 | 8A-USB3HUB30

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

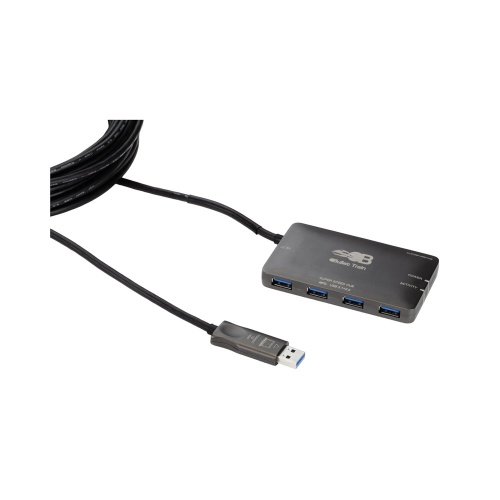

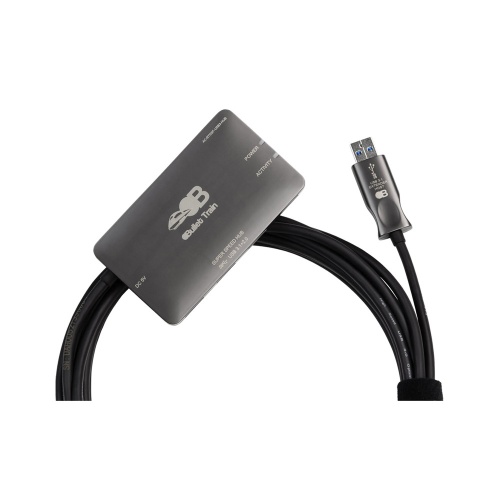

The Bullet Train USB 3.1 Extension Cable with Hub offers a versatile solution for USB extension and connectivity, primarily designed for video conferencing applications such as Zoom and Teams. It features USB-A on one end and a 4-port USB HUB supporting USB 3.1 Gen 1, USB 3.0, and 2.0, enabling simultaneous connection of up to four USB cameras or other devices, extending up to 40 meters with 4K video signal support. Constructed with Cleerline SSF fiber optics and Kevlar for strength, it maintains reliable performance with a bend radius of 5 mm and is rated CL2/CL3 in-wall. Certified for UL 444, CE, FCC, ISF, and RoHS, this cable meets industry safety and compliance standards, ensuring its suitability across education, corporate offices, retail, hospitality, and luxury homes.

Main Features

  • Four active USB-A female ports
  • Supports up to 40 meter extension
  • USB 3.1 Gen 1 support
  • CL2/CL3 in-wall rating
  • Built with Cleerline SSF fiber optics
  • 5 mm bend radius
  • Extremely strong pull capacity with Kevlar
  • Supports UVC devices for video
  • Supports UAC devices for audio
  • UL 444/CSA C22.2 No. 214, CE, FCC, ISF certified, RoHS Compliant
  • General Information

    Name:AV Pro Edge AC-BTSSF-USB3-HUB-30 USB 3.1 Extension Cable with Hub, 30m
    Category:AV Pro Edge, Pro AV, Commercial Connector Cables, Pro USB Cables
    UPC Code:850015330780
    Country of Origin:. Country of origin is subject to change.
