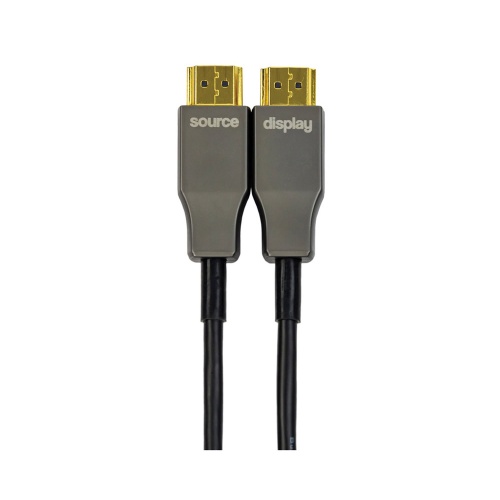

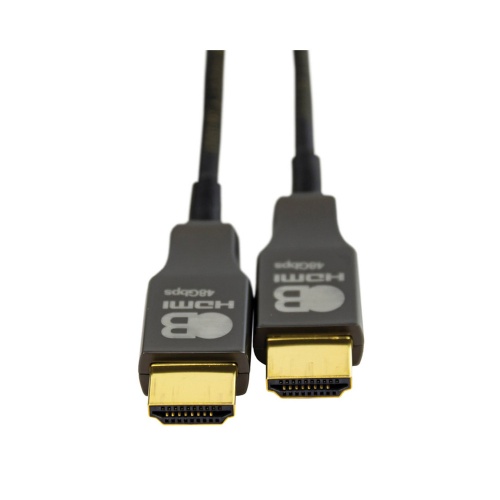

AV Pro Edge AC-BTSSF-10KUHD-80 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 80m

AC-BTSSF-10KUHD-80 | 8A-ACBTSSD80

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Bullet Train HDMI 2.1 cables are designed for mission-critical environments requiring high stability and performance. These Active Optical Cables (AOC) combine Cleerline SSF fiber optics and copper wire to deliver 48Gbps data transfer and support high frame rates up to 240 fps, significantly reducing latency by up to 20% compared to passive copper HDMI cables. Certified by the Imaging Science Foundation (ISF) and CMP/Plenum rated, they support advanced features including Variable Refresh Rate (VRR), 4K to 10K resolutions, HDR, Dolby Vision, and various audio formats including Dolby Atmos and DTS. The cables include both transmitter and receiver heads powered via HDMI ports, with optional supplemental power via USB dongle if needed, and come with four terminable OM2 fiber optic strands for future-proofing data and AV connectivity.

Main Features

  • 48 Gbps bandwidth supporting 120 fps/hz
  • CMP and Plenum cable ratings for in-wall installations
  • Supports Variable Refresh Rate (VRR) and Fixed Rate Link (FRL)
  • Compatible with 4K, 5K, 8K, and 10K resolutions
  • Includes Ethernet channel, ARC (5-60 m), and eARC (5-20 m)
  • Supports 10 and 12 bit color depths
  • Handles HDR, Dolby VisionR, and 3D signals
  • Compatible with 7.1 Audio, Dolby AudioTM including Atmos, and DTS AudioR
  • Certified UL 444/CSA C22.2 No. 214, CE, FCC, ISF, RoHS, REACH
  • Low latency with up to 20% less delay than passive copper cables

    • General Information

    Name:AV Pro Edge AC-BTSSF-10KUHD-80 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 80m
    Category:AV Pro Edge, Pro AV, Commercial Connector Cables, Pro HDMI Cables
    UPC Code:850001710916
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Manufacturer Brochure
