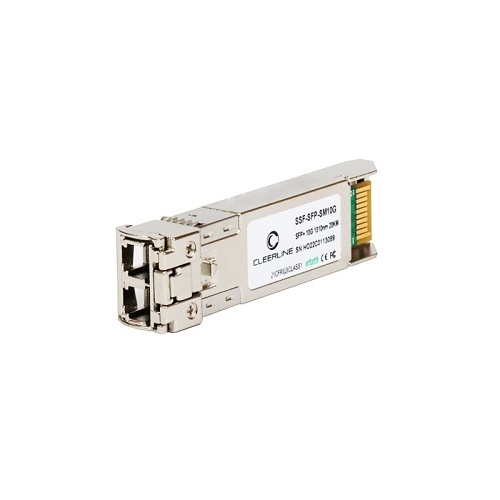

Image of 4E-SFPSM10G
Shop all Cleerline

Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver SM 10GBase-LR, 1310nm, 20Km Max Reach

SSF-SFP-SM10G|4E-SFPSM10G
Shop all Cleerline

Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver SM 10GBase-LR, 1310nm, 20Km Max Reach

SSF-SFP-SM10G|4E-SFPSM10G

Sign In for Dealer Pricing

Become an ADI Customer
Image of 4E-SFPSM10G
Cleerline

Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver SM 10GBase-LR, 1310nm, 20Km Max Reach

SSF-SFP-SM10G | 4E-SFPSM10G

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Cleerline SSF-SFP-SM10G is a high-performance 10G SFP+ transceiver designed for long-range data transmission over single-mode fibers. Operating at a wavelength of 1310nm, this transceiver supports distances up to 20 kilometers, making it ideal for applications requiring extended reach. The SSF-SFP-SM10G is compliant with the 10GBASE-LR standard and features a line rate of 10.3125Gbps, ensuring reliable and efficient data communication. This SFP+ transceiver utilizes a 1310nm DFB transmitter and PIN photodetector, providing low power consumption and superior EMI performance with its all-metal housing. It is hot-pluggable, allowing for easy installation and maintenance. The module supports advanced digital diagnostics, enabling real-time monitoring of received optical power, laser bias current, and optical output power. The electrical interface is compliant with SFI specifications, ensuring compatibility with a wide range of networking equipment. The SSF-SFP-SM10G is ideal for various applications, including 10GBASE-LR at 10.3125Gbps and 10GBASE-LW at 9.953Gbps. It is suitable for long-range data communication in enterprise networks, data centers, and high-speed storage area networks (SANs). The transceiver's robust design and compliance with industry standards make it a cost-effective solution for enhancing network infrastructure and supporting high-density port configurations.

Main Features

  • This SFP accepts 2 LC connectors.
  • Optical interface compliant to IEEE 802.3ae 10GBASE-LR
  • Compliance: MSA SFF-8431, RoHS
  • Hot Pluggable
  • 1310nm DFB transmitter, PIN photo-detector
  • Applicable for 20km SMF connection
  • Operating case temperature: 0 to 70°C
  • Low power consumption
  • All-metal housing for superior EMI performance
  • Advanced firmware allows customer system encryption information to be stored in transceiver

    • General Information

    Name:Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver SM 10GBase-LR, 1310nm, 20Km Max Reach
    Category:Cleerline, Data Comm & Networking, Network Adapters, SFP Modules
    UPC Code:672975372552
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
