APC AR8665 Vertical Cable Management

AR8665 | 2G-AR8665

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

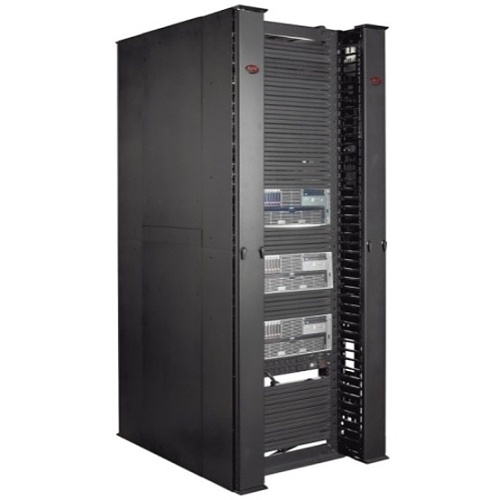

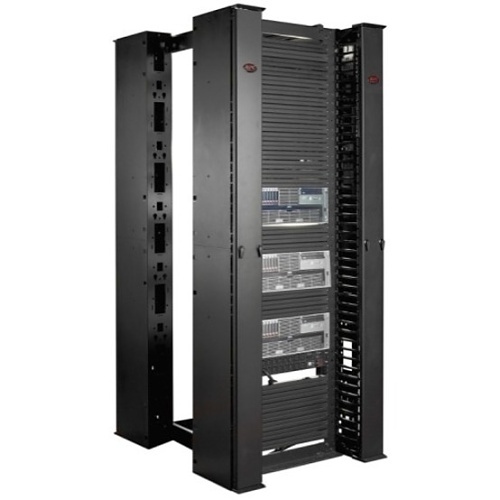

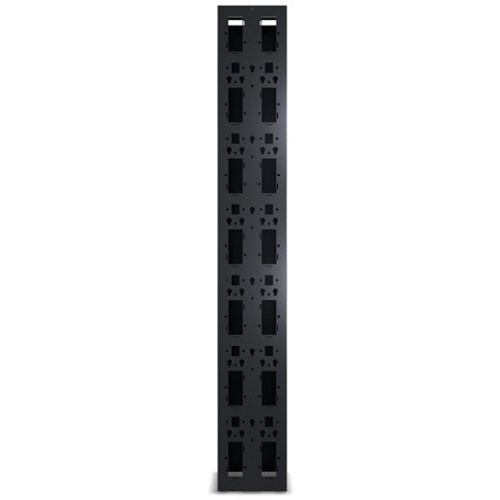

This 12" wide, high capacity vertical cable manager for 2 and 4 Post open frame racks features a single-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications.

Main Features

Cable protection-Smooth plastic fingers provide proper bend radius

High capacity cable finger design-Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel

Toollessly mount vertical Rack PDUs-Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside

Cable management tie-off backplate-Backplates feature multiple mounting holes for toolless accessory installation of vertical Rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off (AR8621) and fiber spools for excess fiber slack management (AR8444)

Slam-to-latch full length door-Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right

Vertical cable managers ship fully assembled-Vertical cable managers ship fully assembled reducing the amount of time required to install equipment

Grounding connection-Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager

Similar look-and-feel to NetShelterT enclosures-Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures

Horizontal cable routing front-to-back-Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK

General Information

Name: APC AR8665 Vertical Cable Management

Category: APC by Schneider Electric, Data Comm & Networking, Racks & Enclosures, Cable Managers

UPC Code: 731304291602

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number 2G-AR8665 Brand Name APC by Schneider Electric Manufacturer Part Number AR8665 Package Length 15.83 Product Type Cable Organizer

: Material Plastic

: Color Black Depth 14.17" Height 84.02" Weight 80.03lb Width 11.97"

: Limited Warranty 2-Year

: Compatibility APC NetShelter EnclosureAPC Open Frame Rack:2 Post4 Post Environmental Certification UL Listed Package Contents Doors, Installation Guide, Mounting hardware
