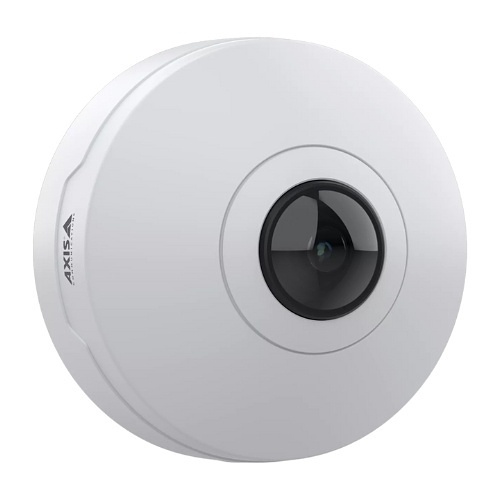

AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P)
02637-004|Z4-02637004
AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P)
02637-004|Z4-02637004
Axis Communications
AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P)
02637-004 | Z4-02637004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS M4328-P can deliver 360° or 180° panoramic views at up to 30 fps with no blind spots. The camera can stream up to four individual view areas simultaneously, with support for digital PTZ. Built on ARTPEC-8, it offers powerful artificial intelligence and deep learning analytics on the edge. Plus, thanks to AXIS Object Analytics, it can accurately detect and classify moving objects for more effective monitoring. The camera is delivered factory-focused and features digital roll functionality for easy installation. Furthermore, it’s compact, discreet, and repaintable to blend in with any surroundings.
Main Features
General Information
Name:AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P)
Category:Axis Communications, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code:7331021081468
Country of Origin:Cambodia. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02637004 Brand Name AXIS Communications Manufacturer Part Number 02637-004 Product Name AXIS M4328-P US Product Series M43 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6, NIST SP500-267
Aperture f/2.2 Connectivity Technology Wired Effective Camera Resolution 12MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2.2 Maximum Frame Rate 30fps Minimum Focal Length 1.2mm Night Vision Yes Video Formats H.264, H.265, MJPEG, MPEG-4
Image Sensor Type CMOS Wide Dynamic Range Yes
TAA Compliant Yes
Image Sensor Size 1/2.3" Maximum Video Resolution 2992 x 2992
Maximum Operating Temperature 104°F (40°C) Operating Humidity 0.85 Operating Temperature (T-T) 32-104°F
Minimum Illumination 0.04 lux
Focal Length 1.2mm Maximum Focal Length 1.2mm
Memory Card Supported Yes
ADI Part Number Replaces Z4-01731004, Z4-01732001, Z4-01732004 Model Number Replaces 01731-004, 01732-001, 01732-004
Color White Form Factor Fisheye Height 2" Weight 10.58oz
Maximum Power Consumption 5W Power over Ethernet (PoE) Yes
Diameter 4" Mount Type Bracket Mount, Gang Box Mount, Junction Box Mount, Tripod Mount
Limited Warranty 5-Year
Certifications EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin KH Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6 Environmentally Friendly Yes Features 2D Noise Reduction, 3D Digital Noise Reduction, Day/Night, Human Detection, Mirror, Noise Reduction, Privacy Masking, Vehicle Detection, Video Management System, White Balance, Wide Dynamic Range Indoor/Outdoor Indoor Package Contents M4328-P Panoramic Camera Installation guide Owner authentication key
