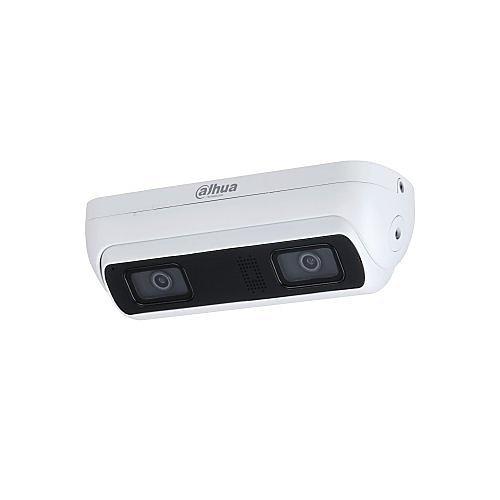

Dahua DH-IPC-HDW8441X-3D Ultra-Series 4MP Dual-Sensor StereoVision People Counting Camera, 2.8mm Fixed Lens, White
Dahua DH-IPC-HDW8441X-3D Ultra-Series 4MP Dual-Sensor StereoVision People Counting Camera, 2.8mm Fixed Lens, White
Dahua DH-IPC-HDW8441X-3D Ultra-Series 4MP Dual-Sensor StereoVision People Counting Camera, 2.8mm Fixed Lens, White
DH-IPC-HDW8441X-3D | VD-HDW844X3D
Please sign in to view pricing and availability and to add to cart.
Product Overview
The DH-IPC-HDW8441X-3D offers cutting-edge Analytics+ that use complex real-time algorithms to deliver accurate people counting and flow statistics. The camera uses an advanced Vision Processor Unit (VPU) for high-performance machine vision and visual awareness. The advanced VPU allows for complex vision applications that are impossible with conventional ISPs.
The dual 4MP sensors work in combination to deliver a single video stream that captures 3D depth in the image, offering improved accuracy as compared to single-sensor cameras. The dual-sensor technology captures an object's height, letting the camera better distinguish between people and other objects.
The camera offers several distinct people counting functions: Line Crossing, Regional Count, and Queue Management. The line crossing function counts the number of people crossing a defined lines, and offers maximum/minimum height detection to help filter objects that are too tall or too small. The Regional function counts the number of people in four (4) distinct, user-defined regions. Finally, the Queue Management function keeps count of the number of people waiting in a defined area and triggers an alert if the number or the wait time exceeds a defined threshold.
Main Features
General Information
Specifications
ADI Part Number VD-HDW844X3D Brand Name Dahua Manufacturer Dahua Technology Manufacturer Part Number DH-IPC-HDW8441X-3D Product Line WizMind Product Model DH-IPC-HDW8441X-3D Product Name 4MP StereoVision People Counting Camera Product Series Ultra Product Type Network Camera
Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Diagonal, Horizontal, Vertical Field of View (Vertical) 95° Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type Infrared/Color Number of IR LEDs 1 Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 65.62 ft Wide Dynamic Range Yes
Ingress Protection Rating IP67 NDAA Compliant No
Maximum Video Resolution 2560 x 1440 Number of Sensors 2
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95
Longest Shutter Speed 1/3 Second Shortest Shutter Speed 1/100000 Second
Network (RJ-45) Yes
Focal Length 2.8mm Lens Included Yes Maximum Focal Length 2.8mm
Remote Management Yes
Color White Durability Dust Resistant, Impact Resistant, Vandal Resistant, Waterproof Form Factor PTZ Weight 1.76lb
Input Voltage 12V DC
Mount Type Desktop Mount, Rack Mount, Wall Mount
Storage Type Memory Card
Limited Warranty 5-Year
Country of Origin CN Features Auto Gain Control, Back Light Compensation (BLC), Built-in Siren, Cross Line Detection, Day/Night, Highlight Compensation (HLC), Multi-view Stream, Removable IR Cut-off Filter, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
