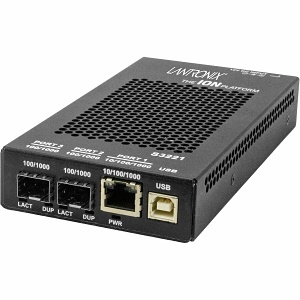

Lantronix S3221-1040-OZ Media Converter, 10/100/1000BASET to 2xSFP OZ
Lantronix S3221-1040-OZ Media Converter, 10/100/1000BASET to 2xSFP OZ
Lantronix S3221-1040-OZ Media Converter, 10/100/1000BASET to 2xSFP OZ
S3221-1040 | P6-S32211432
Please sign in to view pricing and availability and to add to cart.
Product Overview
Stand-alone Gigabit Ethernet Remotely Managed NID
10/100/1000Base-T to 1000Base-X with OAM/IP-Based Management
The ION S3220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-TX ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S3220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C3220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S3220 offers a variety of methods for the secure delivery of mobile backhaul applications.
Main Features
General Information
Specifications
ADI Part Number P6-S32211432 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S32211040OZ Maximum Distance 328.08' Packaged Quantity 2 Product Model S3221-1040 Product Name S3221-1040 Transceiver/Media Converter Product Series S3220 Product Type Transceiver/Media Converter
Media Type Supported Optical Fiber, Twisted Pair
TAA Compliant Yes
Expansion Slot Type SFP Number of SFP Slots 2 Number of Total Expansion Slots 2
Number of Network (RJ-45) Ports 1 Number of Ports 1
Network Technology 10/100/1000Base-T, 100/1000Base-X
Ethernet Technology Gigabit Ethernet
Depth 6.5" Height 1" Weight 2lb Width 3.3"
Input Voltage 120V AC, 230V AC Power Source AC Adapter
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S3221-1040 Transceiver/Media ConverterPower Supply - Australia
