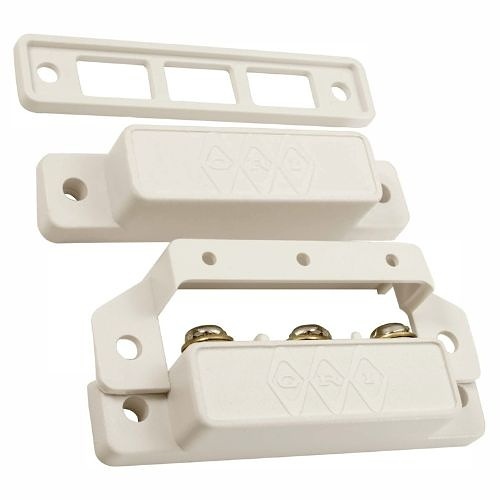

GRI 29C 29 Series Surface Mount Magnetic Reed Switch Set, 1" Standard Gap, 5W, 175VDC, 0.25A, SPDT, and Side Mounted Screw Terminals, White
29C|GI-29CWH
GRI 29C 29 Series Surface Mount Magnetic Reed Switch Set, 1" Standard Gap, 5W, 175VDC, 0.25A, SPDT, and Side Mounted Screw Terminals, White
29C|GI-29CWH
George Risk Industries
GRI 29C 29 Series Surface Mount Magnetic Reed Switch Set, 1" Standard Gap, 5W, 175VDC, 0.25A, SPDT, and Side Mounted Screw Terminals, White
29C | GI-29CWH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
Main Features
General Information
Name:GRI 29C 29 Series Surface Mount Magnetic Reed Switch Set, 1" Standard Gap, 5W, 175VDC, 0.25A, SPDT, and Side Mounted Screw Terminals, White
Category:George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:697625007196
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-29CWH Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number 29C-W Product Model 29C Product Name 29C Magnetic Contact Product Series 29 Product Type Magnetic Contact
Connectivity Technology Wired Material Steel Standard Gap 1"
Color White
Power Source DC
Contact Type SPDT Installation Type Commercial Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Additional Information - Surface mount magnetic contacts
- Screw down flanges
- Hermetically sealed
- Plated contacts resist sticking or freezing
- SPDT
Country of Origin US Features 24" jacketed cable on PA Series, Concealed terminals on 28 Series, Extra wide gap up to 2", 1" on steel, Hermetically sealed, Lifetime warranty against workmanship, material and factory defects, Longer leads upon request on PA series, Plated contacts resist sticking or freezing, Screw down flanges, Side mounted screw terminals on 29 series, Spacers, covers and screws Included, SPDT, Standard gap up to 1", 5/8" on steel, Surface mount magnetic contacts, UL and ULC approved, Wide gap up to 1 1/2", 3/4" on steel Package Contents - 29C Magnetic Contact
- Covers
- Spacers
- Mounting Hardware
