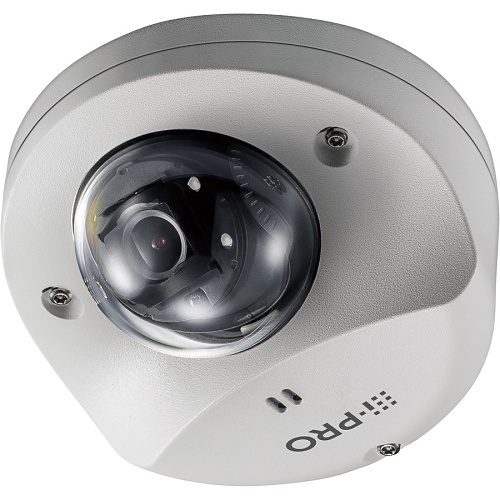

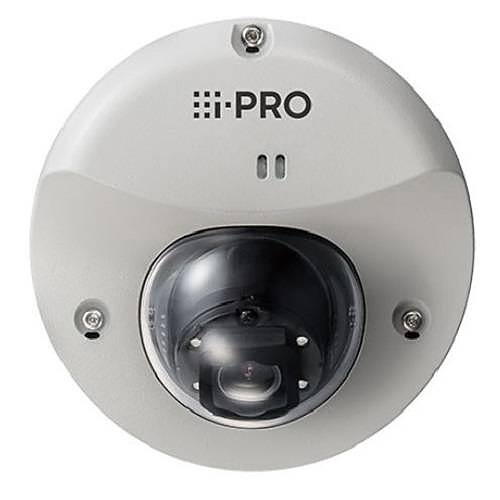

i-PRO WV-S3512LM On-Board Compact Dome IP Camera, 720p
WV-S3512LM | PA-WVS3512LM
Please sign in to view pricing and availability and to add to cart.
Product Overview
This HD / 60 fps Compact Dome Network Camera is based on the concept of "i-PRO EXTREME".
Compact size HD Dome Network Camera
The compact body with the diameter of 109mm and the height of 53mm blends in to walls and ceilings.
Even when installing the camera in a store/shop with atmosphere, the installation can be made without destroying the atmosphere.
Extreme image quality allows evidence to be captured even under challenging conditions
- Auto Shutter speed control for fast moving objects with Intelligent Auto
- Sharp and clear images of a walking person day & night
- Outstanding low light performance in true color with low noise for night time applications
- Super Dynamic 134dB for backlit situations involving headlights and shadows on night streets
- Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 15 m (49 feet) irradiation distance
Extreme H.265 compression with new Smart Coding
- Longer recording and less storage compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) detects movement within the image and compresses the areas with little motion in order to reduce transmitted data while maintaining the quality of the image
- New "Smart Facial Coding" adds more bandwidth reduction for ID camera applications mainly capturing faces
Extreme Reliability
It is robust enough for vehicles such as buses and trains to achieve stable monitoring.
- Railway Applications : EN50155:2-17 Class OT2/ST2, IEC62236-3-2
- Water and Shock Resistance : IP66, IK10
- Fire safety on rolling stock : EN45545-2 compliant, NFPA130
Main Features
General Information
Specifications
ADI Part Number PA-WVS3512LM Brand Name i-PRO Manufacturer Part Number WV-S3512LM Product Type Network Camera
Effective Camera Resolution 1MP Field of View Horizontal, Vertical Field of View (Vertical) 97° Lens Type Fixed Maximum Frame Rate 60fps Minimum Focal Length 2.8mm Night Vision Yes Optical Zoom 1x Video Formats H.264, H.265, MJPEG
Night Vision Distance 49 ft
Ingress Protection Rating IP66
Maximum Video Resolution 1280 x 960
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 1
Focal Length 2.8mm Maximum Focal Length 2.8mm
Color White Durability Dust Resistant, Impact Resistant, Shock Resistant, Waterproof Form Factor Dome Height 2.1" Weight 14.46oz
Input Voltage 48V DC
Diameter 4.3" Mount Type Ceiling Mount, Wall Mount
Features Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Built-in OSD Function, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, SD Card Local Storage Impact Protection Rating IK10
