Product Overview
The new camera boasts a powerful 31x motorized varifocal zoom, offering a versatile focal length range of 6.91mm to 214.7mm, providing outstanding image quality in 4K resolution. The camera delivers true colors and great forensic detail, even in near complete darkness. The camera has built-in AI analytics that can detect, track, and extract objects, such as people, faces, vehicles, and license plates. It can also trigger alarms based on events, such as someone entering a restricted area or loitering for too long. Wise AI goes beyond recording, leveraging AI algorithms for proactive management for any vertical, including traffic analysis, crowd control, queue optimization, slip and fall detection, social distancing.
General Information

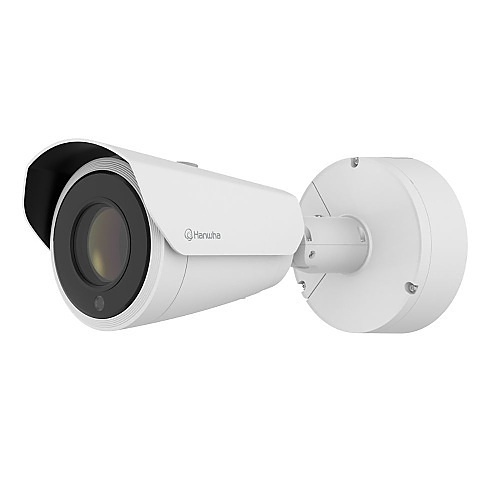

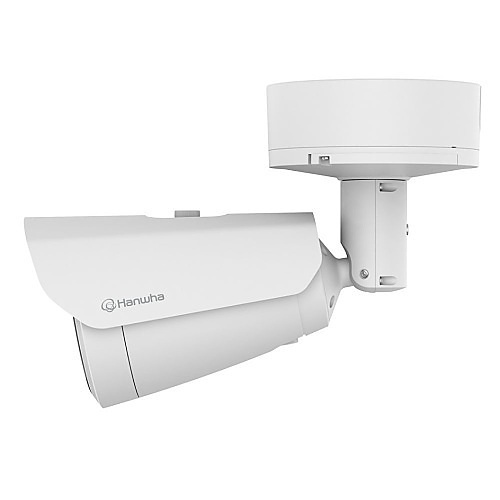

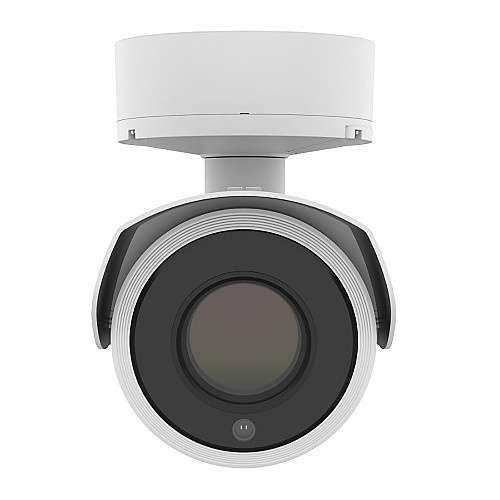

Name : Hanwha PNO-A9311RLP 4K AI Bullet Camera, 6.91-214.7mm Varifocal Lens, 31x Optical Zoom, IR 70m, White , Hanwha Vision
Category : Bullet Cameras
UPC Code :
Country of Origin : Vietnam. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-PA9311RLP
Brand Name : Hanwha Vision
Manufacturer : Hanwha Vision
Manufacturer Part Number : PNO-A9311RLP
Product Model : PNO-A9311RLP
Product Name : 4K, AI IR Zoom (31x), Bullet Camera with Wisenet Road AI
Product Type : Bullet Camera
Technical Information
Connectivity Technology : Wired
Field of View : Diagonal, Horizontal, Vertical
Field of View (Horizontal) : 60.92°
Field of View (Vertical) : 35.26°
Lens Type : Varifocal
Material : Aluminum
Maximum Aperture : f/1.36
Maximum Frame Rate : 30fps
Minimum Focal Length : 6.91mm
Night Vision : Yes
Optical Zoom : 31x
Video Formats : H.264, H.265, MJPEG
Camera
Image Sensor Type : CMOS
Night Vision Distance : 229.66 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66, IP67
TAA Compliant : Yes
Display & Graphics
Maximum Video Resolution : 3840 x 2160
Environmental Conditions
Maximum Operating Temperature : 131°F
Minimum Operating Temperature : -40°F
Operating Humidity : 90% RH
Exposure
Longest Shutter Speed : 1/5 Second
Minimum Illumination : 0.0075 lux
Shortest Shutter Speed : 1/12,000 Second
Lens
Focal Length : 6.91-214.7mm
Maximum Focal Length : 214.7mm
Physical Characteristics
Color : White
Durability : Dustproof, Impact Resistant, Waterproof
Form Factor : Bullet
Weight : 7.05lb
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 6.30"
Mount Type : Conduit Mount, Gang Box Mount
Video
Analog Video Signal Format : CVBS
Maximum Resolution : 1280 x 720
Warranty
Limited Warranty : 5-Year
Miscellaneous
Country of Origin : VN
Features : 0.05Lux at F1.6 (Color), 0Lux (B/W, IR LED on), 4K Low- Moderate Speed dedicated LPR Bullet Camera with Wisenet Road AI, 6.91-214.64mm (31x) zoom lens, Day and Night(ICR), H.265, H.264, MJPEG codec, Max. 4K resolution at 30FPS, WDR(120dB), WiseIR for LPR plate reads for approx. 200ft (61m), WiseStreamⅡ, WiseStream Ⅲ (Using AI engine)
Impact Protection Rating : IK10
