Gefen EXT-DVI-144DL 14 DVI Dual Link Splitter

Brand: Gefen
ADI #:GM-EXDVI144D Model #: EXT-DVI-144DL  Name: Gefen EXT-DVI-144DL 14 DVI Dual Link Splitter
  • Splits 1 DVI source to 4 outputs
  • Supports Resolutions up to 3840x2400
  • Maintains quality without Resolution loss

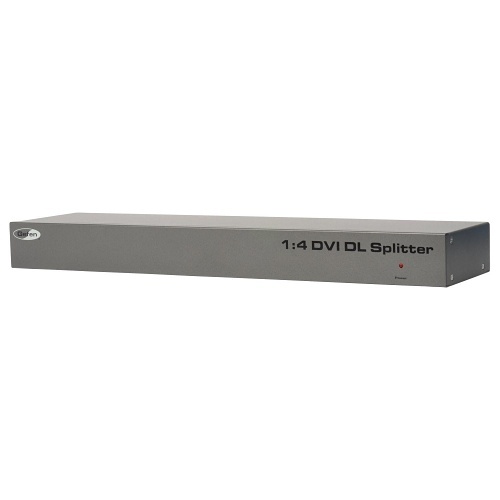

Image of GM-EXDVI144D

Product Overview

Split one Dual Link DVI source to four Dual Link DVI outputs

The 1:4 DVI Dual Link Splitter distributes a dual link DVI source to four DVI dual link outputs, without losing quality or resolution. It works with any dual link DVI computer supporting resolutions up to 3840 x 2400. The DVI DL Splitter supports internal or pass-through EDID selections, output masking on/off, and can be placed in standby mode, which keeps the unit idle using only 1W of power when the source is inactive. Using the RS-232 port allows making mode changes for the EDID and output masking in addition to firmware upgrade.

General Information

Name : Gefen EXT-DVI-144DL 14 DVI Dual Link Splitter , Gefen
Category : HDMI Splitters
UPC Code :
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GM-EXDVI144D
Brand Name : Gefen
Manufacturer Part Number : EXT-DVI-144DL
Product Type : Video Switchbox

Display & Graphics

Maximum Video Resolution : 3840 x 2400

Interfaces/Ports

Number of DVI Inputs : 1

Physical Characteristics

Depth : 4"
Width : 17"

Product Information

Mount Type : Rack Mount
Number of Displays Supported : 4

Video

Graphics Modes : WQUXGA

Miscellaneous

Country of Origin : TW
