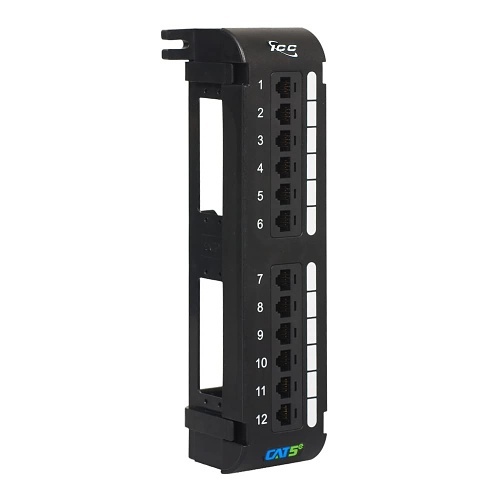

ICC ICMPP12V5E CAT5e Patch Panel, Wall Mount 12-Port Network Patch Panel with Rear 110 IDC Terminal Blocks and 89D Wall Mount Bracket, UL Listed and PoE++ Rated Gigabit Applications, Black

ICMPP12V5E

H2-MPP12V5E

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Number of Ports: 12

Cable Type: Category 5e

Compatible Rack Unit: 1U

Shop All ICC

ICC ICMPP12V5E CAT5e Patch Panel, Wall Mount 12-Port Network Patch Panel with Rear 110 IDC Terminal Blocks and 89D Wall Mount Bracket, UL Listed and PoE++ Rated Gigabit Applications, Black

ICMPP12V5E | H2-MPP12V5E

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

This ICC CAT5e Patch Panel is designed for wall mounting, featuring an 89D bracket for easy installation. With rear 110 IDC termination blocks, it supports quick installation while providing excellent performance for Gigabit Ethernet applications. The patch panel is PoE++ rated, with gold-plated contacts ensuring reliable connections. Durable materials, including flame-retardant plastic and phosphor bronze connectors, make this panel suitable for long-term use. It also supports re-termination and is backward compatible with lower-rated category components, meeting industry standards for optimal network performance.

Main Features

HIGH-PERFORMANCE CONNECTIVITY: Wall-mounted CAT5e component-rated fixed patch panel with an 89D wall mount bracket, delivering excellent performance for data networks requiring maximum speed and bandwidth. Backward compatible with all lower rated category components.

FUTURE-PROOF AND RELIABLE: Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE) up to 90W.

EFFICIENT INSTALLATION AND QUICK REFERENCE: Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference.

DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.

ENHANCED CROSSTALK CANCELLATION: Engineered to exceed ANSI/TIA-568 Category 5e connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance.

General Information

Name: ICC ICMPP12V5E CAT5e Patch Panel, Wall Mount 12-Port Network Patch Panel with Rear 110 IDC Terminal Blocks and 89D Wall Mount Bracket, UL Listed and PoE++ Rated Gigabit Applications, Black

Category: ICC, Data Comm & Networking, Patch Panels, Network Patch Panels

UPC Code: 633758007047

Country of Origin: Taiwan, Province of China. Country of origin is subject to change.

Specifications

: ADI Part Number H2-MPP12V5E Brand Name ICC Connector Gender Female Manufacturer ICC Manufacturer Part Number ICMPP12V5E Product Model ICMPP12V5E Product Name ICMPP12V5E Cat. 5e 12-port Network Patch Panel Product Type Network Patch Panel

: Material ABS, Gold, Phosphor Bronze

: TAA Compliant Yes

: Connector Type RJ45 Number of Network (RJ-45) Ports 12 Number of RJ-11 Ports 12

: Color Black Compatible Rack Unit 1U Depth 2.4" Height 2.4" Weight 0.8lb Width 3.38"

: Length 10" Mount Type Wall Mount

: Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor Package Contents
ICMPP12V5E Cat. 5e 12-port Network Patch Panel
1 x 89U Universal Mounting Bracket
3 x 6" Cable Tie
TIA-568A Color Wiring Diagrams
TIA-568B Color Wiring Diagrams
and more below
, Installation Instructions, Mounting screws
