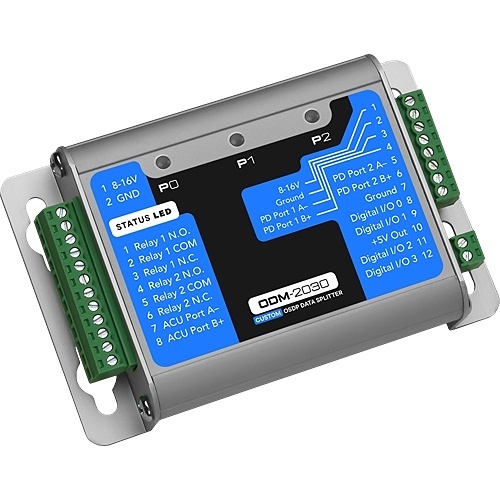

Image of ZE-ODM2030
Shop all Cypress

Cypress ODM-2030 Intelligent OSDP-to-Wiegand Data Splitter 4.50'' x 2.90'' x 1.00'' 8–16 VDC OSDP/Wiegand, Black

ODM-2030|ZE-ODM2030
Shop all Cypress

Cypress ODM-2030 Intelligent OSDP-to-Wiegand Data Splitter 4.50'' x 2.90'' x 1.00'' 8–16 VDC OSDP/Wiegand, Black

ODM-2030|ZE-ODM2030

Sign In for Dealer Pricing

Become an ADI Customer
Cypress

Cypress ODM-2030 Intelligent OSDP-to-Wiegand Data Splitter 4.50'' x 2.90'' x 1.00'' 8–16 VDC OSDP/Wiegand, Black

ODM-2030 | ZE-ODM2030

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Cypress ODM-2030 Custom Intelligent OSDP Data Splitter, features 1 OSDP input to 1 OSDP output and 1 Wiegand output. Output Port 1 is OSDP, Output Port 2 is Wiegand. Credentials are output from one port or the other, based on credential specifications defined by the customer. Credential output based on format bit length, facility code values, or card number range. Cypress custom engineering required. 8 - 16 VDC. Durable aluminum housing. Overall dimensions of each unit: 4.50” x 2.90” x 1.00” (approx).

Main Features

  • Recommended for multi-tenant applications with an OSDP and a Wiegand system
  • Connect an OSDP reader to an OSDP system plus a non-access control system, such as an alarm, key cabinet, elevator, or time & attendance system
  • Share an OSDP reader with an OSDP system and a Wiegand system without sending all data to both systems. Custom engineering required
  • Credential data is sent to one access control system, based on custom credential configuration. Credentials are defined by card format and facility code list. Multiple card formats can be specified

    • General Information

    Name:Cypress ODM-2030 Intelligent OSDP-to-Wiegand Data Splitter 4.50'' x 2.90'' x 1.00'' 8–16 VDC OSDP/Wiegand, Black
    Category:Cypress, Access Control, Keypads & Readers, Keypad & Reader Accessories
    UPC Code:816684005046
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
