AXIS Q1941-E Q19 Series Outdoor Thermal Bullet IP Camera, 60mm Lens
Q1941-E|Z4-0785001
AXIS Q1941-E Q19 Series Outdoor Thermal Bullet IP Camera, 60mm Lens
Q1941-E|Z4-0785001
Axis Communications
AXIS Q1941-E Q19 Series Outdoor Thermal Bullet IP Camera, 60mm Lens
Q1941-E | Z4-0785001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

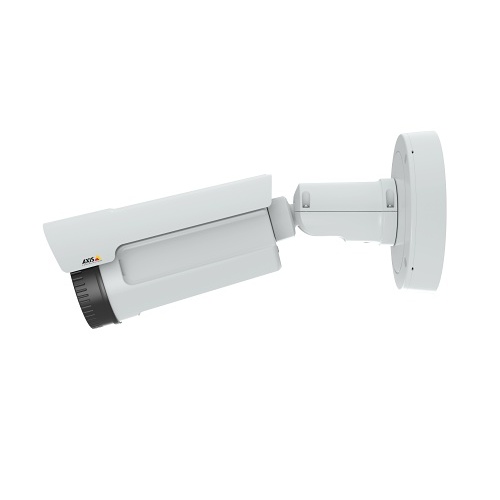

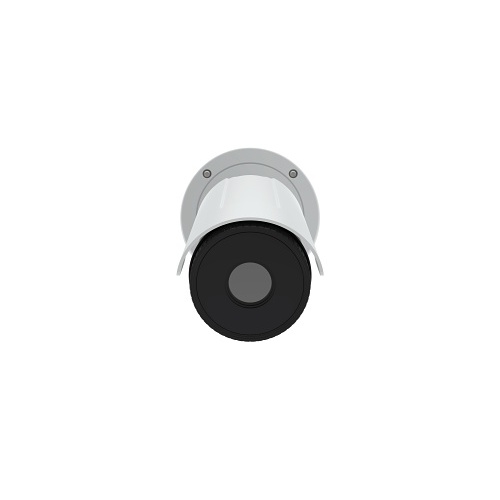

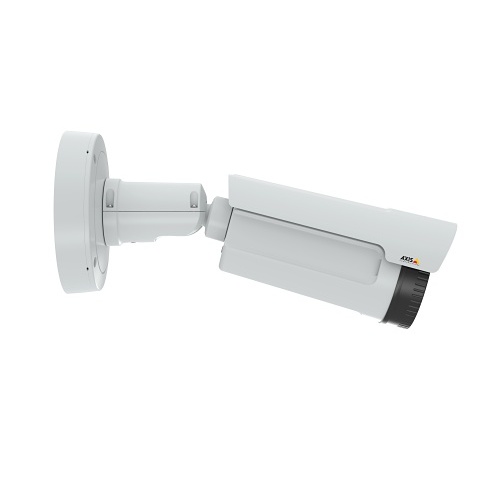

AXIS Q1941-E is an outdoor, bullet style, thermal camera with a built-in window heater for harsh weather conditions. 384x288 resolution and lens alternatives between 7 mm to 60 mm make it possible to optimize detection performance. It supports Electronic Image Stabilization to keep the video smooth during vibrations, and Axis Zipstream that lowers bandwidth and storage requirements. AXIS Q1941-E comes with AXIS Guard Suite analytics and have support for more analytics such as AXIS Perimeter Defender or any other AXIS Camera Application Platform third party applications.
Main Features
General Information
Name:AXIS Q1941-E Q19 Series Outdoor Thermal Bullet IP Camera, 60mm Lens
Category:Axis Communications, Video Surveillance, IP Cameras, Bullet Cameras
UPC Code:7331021048508
Country of Origin:Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-0785001 Brand Name AXIS Communications Manufacturer AXIS Communications Manufacturer Part Number 0785-001 Product Model Q1941-E Product Name AXIS Q1941-E 60MM 8.3 FPS Product Series Q19 Product Type Thermal cameras Supported Network Protocols IPv6 USGv6, NIST SP500-267
Aperture f/1.25 Connectivity Technology Wired Effective Camera Resolution 1MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Frame Rate 8.3fps Minimum Focal Length 60mm Night Vision No Video Formats H.264, MJPEG, MPEG-4
Image Sensor Type Uncooled Microbolometer Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67 NDAA Compliant Yes TAA Compliant Yes
Image Sensor Size 384 x 288 Maximum Video Resolution 768 x 576
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 1 Operating Temperature (T-T) -40-104°F
Network (RJ-45) Yes
Focal Length 60mm Lens Included Yes Maximum Focal Length 60mm
Memory Card Supported Yes
Remote Management Yes
Color White Durability Dustproof, Waterproof, Weatherproof Form Factor Bullet Height 5.7" Width 13.5"
Input Voltage 24V AC, 28V DC Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
Mount Type Backbox Mount, Bracket Mount, Ceiling Mount, Conduit Mount, Corner Mount, Pole Mount, Wall Mount
Storage Type Memory Card
Limited Warranty 5 Year
Certifications EN 50121-4, EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KCC KN22 Class A, RCM AS/NZS CISPR 22 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF S Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-52, IEC 60068-2-6, IEC/EN 60529 IP66, IEC/EN 60529 IP67, MIL-STD-810F (Method 521.2), NEMA 250 Type 4X Features Active Tampering Alarm, Audio Detection, Auto Gain Control, Auto Tracking, Electronic Image Stabilization, Heater, Motion Detection, Privacy Masking Indoor/Outdoor Outdoor Package Contents - Q1941-E Thermal Network Camera
- Resistorx L-Key
- Wall and Ceiling Mount Bracket Terminal Block Connector
- Installation Guide
- Windows Decoder 1-user License
