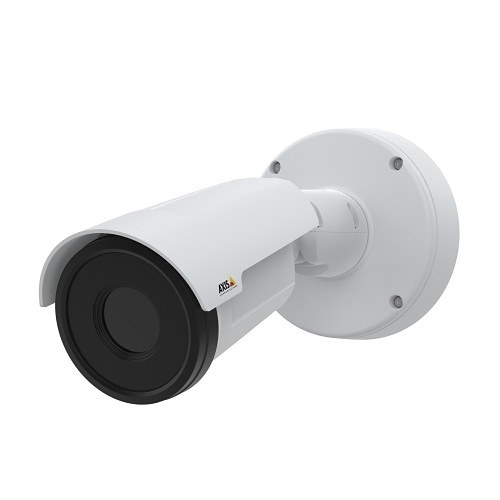

AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 19 mm Lens, White
Q1951-E|Z4-02160001
AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 19 mm Lens, White
Q1951-E|Z4-02160001
Axis Communications
AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 19 mm Lens, White
Q1951-E | Z4-02160001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS Q1952-E delivers a high-resolution thermal video stream for reliable detection 24/7. Ideal for perimeter security, it includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. With a powerful analytics platform, it’s easy to add third-party analytics. Built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. AXIS Q1952-E also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Furthermore, this halogen-free, compact camera is robust and suitable even for harsh conditions.
Main Features
General Information
Name:AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 19 mm Lens, White
Category:Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code:7331021073876
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02160001 Brand Name AXIS Communications Manufacturer AXIS Communications Manufacturer Part Number 02160-001 Product Model Q1951-E Product Name AXIS Q1952-E 19mm 30 fps Product Series Q Product Type Thermal cameras Supported Network Protocols IPv6 USGv6, NIST SP500-267
Aperture f/1.23 Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 30fps Minimum Focal Length 19mm Video Formats H.264, H.265, MJPEG
Image Sensor Type Uncooled Microbolometer Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
Image Sensor Size 640 x 480 Maximum Video Resolution 800 x 600
Operating Temperature (T-T) -40-104°F
Focal Length 19mm Maximum Focal Length 19mm
Memory Card Supported Yes
Color White Durability Dustproof, Waterproof
Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
Mount Type Ceiling Mount, Wall Mount
Certifications CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55032 Class B, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, FCC Part 15 Subpart B Class B, ICES-3(A)/NMB-3(A), ICES-3(B)/NMB-3(B), IEC 62236-4, KC KN32 Class A, KC KN32 Class B, KC KN35, RCM AS/NZS CISPR 32 Class A, RCM AS/NZS CISPR 32 Class B, VCCI Class A, VCCI Class B Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Impact Protection Rating IK10 Indoor/Outdoor Outdoor
