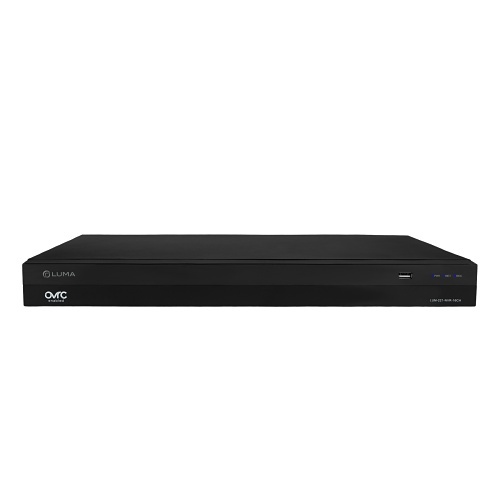

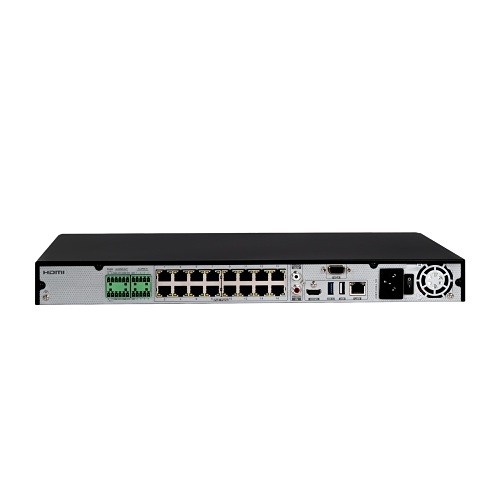

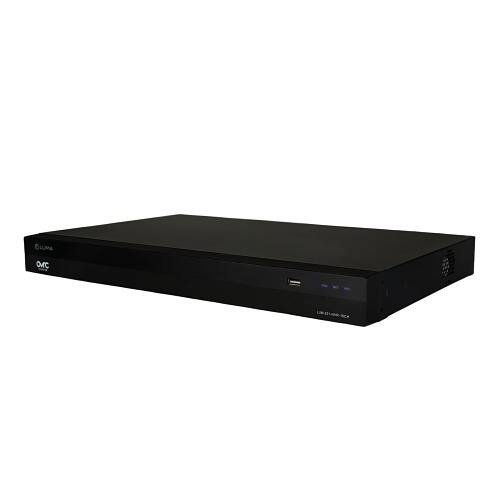

Luma LUM-221-NVR-16CH-6T 221 Series 16-Channel NVR with 16-Port PoE, 6TB HDD, 4K HDMI Output
LUM-221-NVR-16CH-6T|VM-L221N16C6
Luma LUM-221-NVR-16CH-6T 221 Series 16-Channel NVR with 16-Port PoE, 6TB HDD, 4K HDMI Output
LUM-221-NVR-16CH-6T|VM-L221N16C6
Overview
Specifications
Documents
Product Overview
The Luma Surveillance 221 Series NVR is a high-performance network video recorder designed for 16-channel surveillance, ideal for smaller projects with up to 8 cameras. It supports up to 240W PoE power and offers 192 Mbps of bandwidth, accommodating high-resolution cameras up to 16MP. The device includes two SATA bays with storage options of 0TB, 6TB, or 8TB, expandable up to 18TB per drive, and features a 4K HDMI output for clear live viewing. Integrated OvrC and Control4 support facilitate remote management, smart home integration, and streamlined setup, while compliance with NDAA and ONVIF ensures regulatory and interoperability standards. This NVR is suitable for residential and small business environments requiring reliable, secure surveillance solutions. 3-Year Limited Warranty. This Luma Surveillance product has a 3-Year Limited Warranty.
This Luma Surveillance product has a 3-Year Limited Warranty. This Warranty is described in greater detail here: 3-Year Limited Warranty.
Luma Document Repository
This Luma Surveillance product has a 3-Year Limited Warranty. This Warranty is described in greater detail here: 3-Year Limited Warranty.
Luma Document Repository
Main Features
General Information
Name:Luma LUM-221-NVR-16CH-6T 221 Series 16-Channel NVR with 16-Port PoE, 6TB HDD, 4K HDMI Output
Category:Luma, Video Surveillance, Recording Devices & Servers, Network Video Recorders (NVRs), ADI Exclusive
UPC Code:842822069922
Country of Origin:Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number VM-L221N16C6 Bandwidth 192 Mbps Brand Name Luma Manufacturer Part Number LUM-221-NVR-16CH-6T Product Line X21 Product Model LUM-221-NVR-16CH-6T Product Series 221 Product Type NVR Supported Resolutions 1080P, 1280X1024, 12MP, 16MP, 3MP, 4MP, 5MP, 6MP, 720P, 8MP, 960P
Maximum Frame Rate 30fps Motion Detection Yes Number of Channels 16
Operating Temperature (T-T) 14-122°F
HDMI Yes
Ethernet Yes
Dimensions 11.16" x 17.24" x 1.72" Rack Height 1U Weight 9.24lb
PoE Budget 15W
Hard Drive Capacity 36TB Number of Hard Drives Supported 2
Certifications & Standards CE, ETL Listed, EU RoHS, FCC, REACH, WEEE Features Event Search, Intelligent Analysis Search, Time Search
