Luma LUM-221-NVR-16CH-0T 221 Series 16-Channel NVR with 16-Port PoE, 0TB HDD, 4K HDMI Output
LUM-221-NVR-16CH-0T|VM-L221N16C0
Luma LUM-221-NVR-16CH-0T 221 Series 16-Channel NVR with 16-Port PoE, 0TB HDD, 4K HDMI Output
LUM-221-NVR-16CH-0T|VM-L221N16C0
Overview
Specifications
Documents
Product Overview

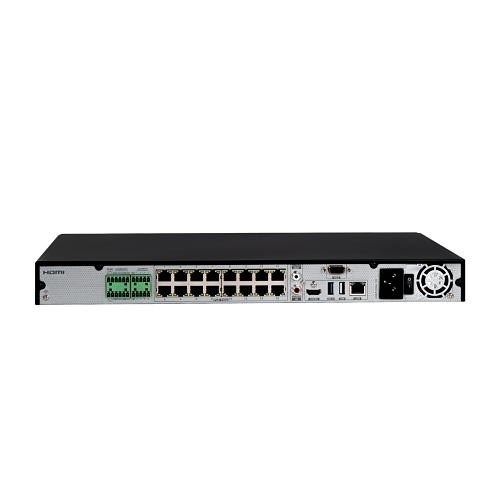

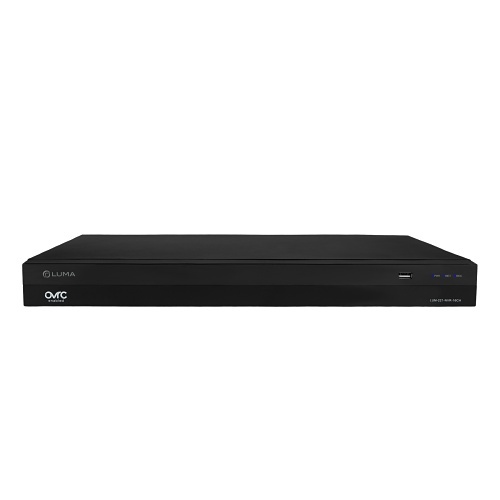

The Luma Surveillance 221 Series NVR is a 16-channel network video recorder designed for efficient, high-performance surveillance in smaller projects requiring up to an 8-camera setup. It supports high-resolution cameras up to 16MP with enhanced processing power, 240W PoE power output, and 192 Mbps bandwidth for smooth streaming and recording. This NVR features two SATA bays supporting up to 18TB each and offers multiple storage options including 0TB, 6TB, or 8TB capacities. It includes a 4K HDMI output for detailed live video display and integrates with Control4 and OvrC for streamlined setup, remote management, and smart home automation capabilities.
This Luma Surveillance product has a 3-Year Limited Warranty. This Warranty is described in greater detail here: 3-Year Limited Warranty.
Luma Document Repository
This Luma Surveillance product has a 3-Year Limited Warranty. This Warranty is described in greater detail here: 3-Year Limited Warranty.
Luma Document Repository
Main Features
General Information
Name:Luma LUM-221-NVR-16CH-0T 221 Series 16-Channel NVR with 16-Port PoE, 0TB HDD, 4K HDMI Output
Category:Luma, Video Surveillance, Recording Devices & Servers, Network Video Recorders (NVRs), ADI Exclusive
UPC Code:842822069915
Country of Origin:Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number VM-L221N16C0 Bandwidth 192 Mbps Brand Name Luma Manufacturer Part Number LUM-221-NVR-16CH-0T Product Line X21 Product Model LUM-221-NVR-16CH-0T Product Series 221 Product Type NVR Supported Resolutions 1080P, 1280X1024, 12MP, 16MP, 3MP, 4MP, 5MP, 6MP, 720P, 8MP, 960P
Maximum Frame Rate 30fps Motion Detection Yes Number of Channels 16
Operating Temperature (T-T) 14-122°F
HDMI Yes
Ethernet Yes
Dimensions 11.16" x 17.24" x 1.72" Rack Height 1U Weight 9.24lb
PoE Budget 15W
Hard Drive Capacity 36TB Number of Hard Drives Supported 2
Certifications & Standards CE, ETL Listed, EU RoHS, FCC, REACH, WEEE Features Event Search, Intelligent Analysis Search, Time Search
