TRENDnet TPE-TG611 6-Port Gigabit PoE+ Switch, 12 Gbps, 65W PoE
TPE-TG611
|TQ-TPETG611
Shop All TRENDnet
TRENDnet TPE-TG611 6-Port Gigabit PoE+ Switch, 12 Gbps, 65W PoE
TPE-TG611 | TQ-TPETG611
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
TRENDnet's 6-Port Gigabit PoE+ Switch, model TPE-TG611, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This small network switch with SFP support provides four gigabit PoE+ ports with a total PoE power budget of 65W, one gigabit port, and one SFP slot for fiber applications. With PoE technology, users only need one set of cables to deliver both data and power. The small network switch with SFP support allows you to network PoE devices such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. The added SFP slot supports both single mode and multi-mode fiber SFP modules for long-distance fiber networking applications.
Main Features
- 4x Gigabit PoE+ ports
- 1x Gigabit port
- 1x SFP Slot
- 12Gbps Switching capacity
- 65W PoE Power budget
- Supports 100/1000base-fx fiber SFP modules
- Reduces equipment cost by delivering data and power over existing network cables
- IEEE 802.1P QoS and DSCP Pass-through support

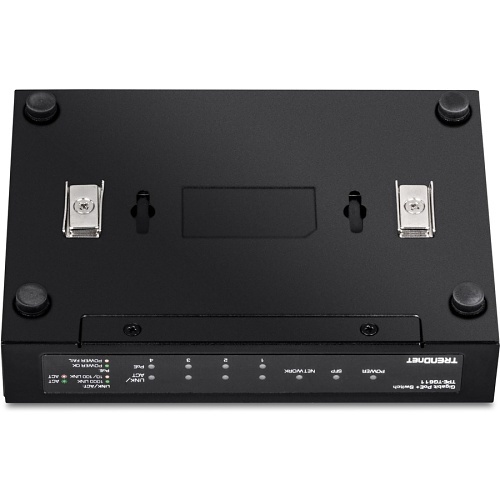

- Compact wall-mountable metal housing, fanless design
General Information
Name: TRENDnet TPE-TG611 6-Port Gigabit PoE+ Switch, 12 Gbps, 65W PoE
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 710931161670
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TPETG611 Brand Name TRENDnet Country of Origin TW Manufacturer TRENDnet Manufacturer Part Number TPE-TG611 Product Model TPE-TG611 Product Name 6-Port Gigabit PoE+ Switch Product Series TPE Product Type Ethernet Switch
Maximum Data Transfer Rate 1Gbps Media Type Supported Optical Fiber, Twisted Pair Network Switch Type Unmanaged Power Consumption 71W
NDAA Compliant Yes TAA Compliant Yes
Expansion Slot Type SFP Number of SFP Slots 1 Number of Total Expansion Slots 1 Shared SFP Slot Yes
Modular Yes Number of PoE (RJ-45) Ports 4 Total Number of Network Ports 6 Uplink Port Yes
Manageable No
Network Technology 1000Base-FX
Ethernet Technology 1 Gbps (Gigabit Ethernet) Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 6.0" Height 2.0" Material Metal Width 5.0"
Frequency 50Hz Input Voltage 100-240V AC PoE (RJ-45) Port No PoE Budget 65W Power over Ethernet (PoE) Yes Power Source AC Power
Length 7.6" Mount Type Desktop Mount
Limited Warranty Lifetime
Environmental Certification CEC, RoHS, WEEE Environmentally Friendly Yes Package Contents - 6-Port Gigabit PoE+ Switch
- Quick Installation Guide
- Power Brick (55V DC, 1.3A)
- Power Cord
- Mounting Hardware
