RDL RU-ADL2 1" 2-Output XLR Professional Audio Delay
RU-ADL2 | RL-RUADL2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

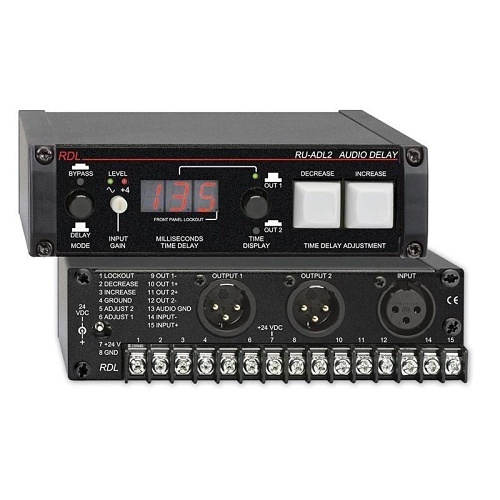

The RU-ADL2 is a DSP based dual-output delay for an analog audio source. It provides exceptional audio performance for the most critical applications in a professional audio environment. The RU-ADL2 accepts a single monaural audio input and provides two separate monaural outputs. The time delay on each output is individually adjustable from 0 to 135 mS. A large, bright 3-digit LED numeric display on the front panel shows the time delay set for each of the two outputs. A locking pushbutton switch selects the output to be displayed and adjusted. Time adjustment is made in 1 mS increments using durable keyboard style pushbuttons on the front panel. If a button is held, the time will first ramp slowly, then more rapidly permitting easy course and fine adjustment of the time delay. A locking pushbutton permits the user to completely bypass and return to the DSP time delay section without losing the stored delay values. Time delay values are stored in a non-volatile memory so the RU-ADL2 returns to the correct settings following any interruption of power.
Main Features
General Information
Name:RDL RU-ADL2 1" 2-Output XLR Professional Audio Delay
Category:Radio Design Labs, Pro AV, Commercial Audio, Pro Audio Mixers
UPC Code:813721013125
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number RL-RUADL2 Manufacturer Part Number RU-ADL2
Frequency 20 Hz-20 kHz
