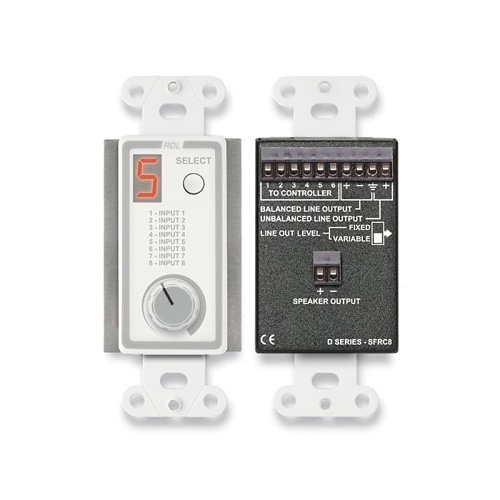

Image of RL-DSFRC8
Shop all Radio Design Labs

RDL D-SFRC8 Room Control Station with Source F

D-SFRC8|RL-DSFRC8
Shop all Radio Design Labs

RDL D-SFRC8 Room Control Station with Source F

D-SFRC8|RL-DSFRC8

Sign In for Dealer Pricing

Become an ADI Customer
Radio Design Labs

RDL D-SFRC8 Room Control Station with Source F

D-SFRC8 | RL-DSFRC8

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The D SERIES-SFRC8 Room Control Station is a SourceFlex listening station for wall mounting in a room, providing source selection and volume control from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The amplified power output can deliver up to 3.5W RMS into an 8 ohms Speaker.

Main Features

  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Volume Adjustment Using a Single-Turn Control
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Line Output Switchable Fixed or Variable
  • Variable Output Follows Front-Panel Level Control
  • 3.5W RMS Audio Amplifier into 8 Ohms, 6.5W into 4 Ohms
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection

    • General Information

    Name:RDL D-SFRC8 Room Control Station with Source F
    Category:Radio Design Labs, Pro AV, Commercial Audio, Pro Audio Mixers
    UPC Code:813721015983
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
